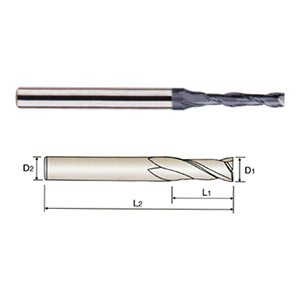

Product Specifications
| Manufacturer Part Number | GMF24004 |
| Diameter (Inch) | 1/16" |
| Diameter (Decimal Inch) | 0.0625" |
| Diameter (mm) | 1.59mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Inch) | 1/4" |
| Length of Cut (Decimal Inch) | 0.2500" |
| Length of Cut (mm) | 6.35mm |
| Overall Length (Inch) | 2-3/8" |
| Overall Length (Decimal Inch) | 2.3750" |
| Overall Length (mm) | 60.33mm |
| Number of Flute | 2 |
| Helix Angle (Degree) | 30 Degree |
| Shank Style | Plain |
| Material | Carbide |
| Coating | AlCrN Coated |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1/16"
Mill Diameter (Decimal Inch):
0.0625"
Mill Diameter (mm):
1.59mm
Number of Flutes:
2
Length of Cut (Inch):
1/4"
Length of Cut (Decimal Inch):
0.2500"
Length of Cut (mm):
6.35mm
Material:
Carbide
Overall Length (Inch):
2-3/8"
Overall Length (Decimal Inch):
2.3750"
Overall Length (mm):
60.33mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
AlCrN
Cutting Direction:
Right Hand
Helix Angle:
30 Degree
interval quantity:
1
