Product Specifications
| Manufacturer Part Number | HPI90160 |
| Number of Flutes | 2 |
| Diameter (Decimal Inch) | 0.630" |
| Diameter (Inch) | 17/27" |
| Diameter (mm) | 16.00mm |
| Shank Diameter (Decimal Inch) | 0.629" |
| Shank Diameter (Inch) | 17/27" |
| Shank Diameter (mm) | 16.00mm |
| Length of Cut (Decimal Inch) | 0.945" |
| Length of Cut (Inch) | 17/18" |
| Length of Cut (mm) | 24.00mm |
| Overall Length (Decimal Inch) | 5.511" |
| Overall Length (Inch) | 5-22/43" |
| Overall Length (mm) | 140.00mm |
| Ball Nose Radius (Decimal Inch) | 0.315" |
| Ball Nose Radius (mm) | 8.00mm |
| Shank Type | Plain |
| Helix Angle | 30 Degree |
| Coating Process | C-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right Hand |

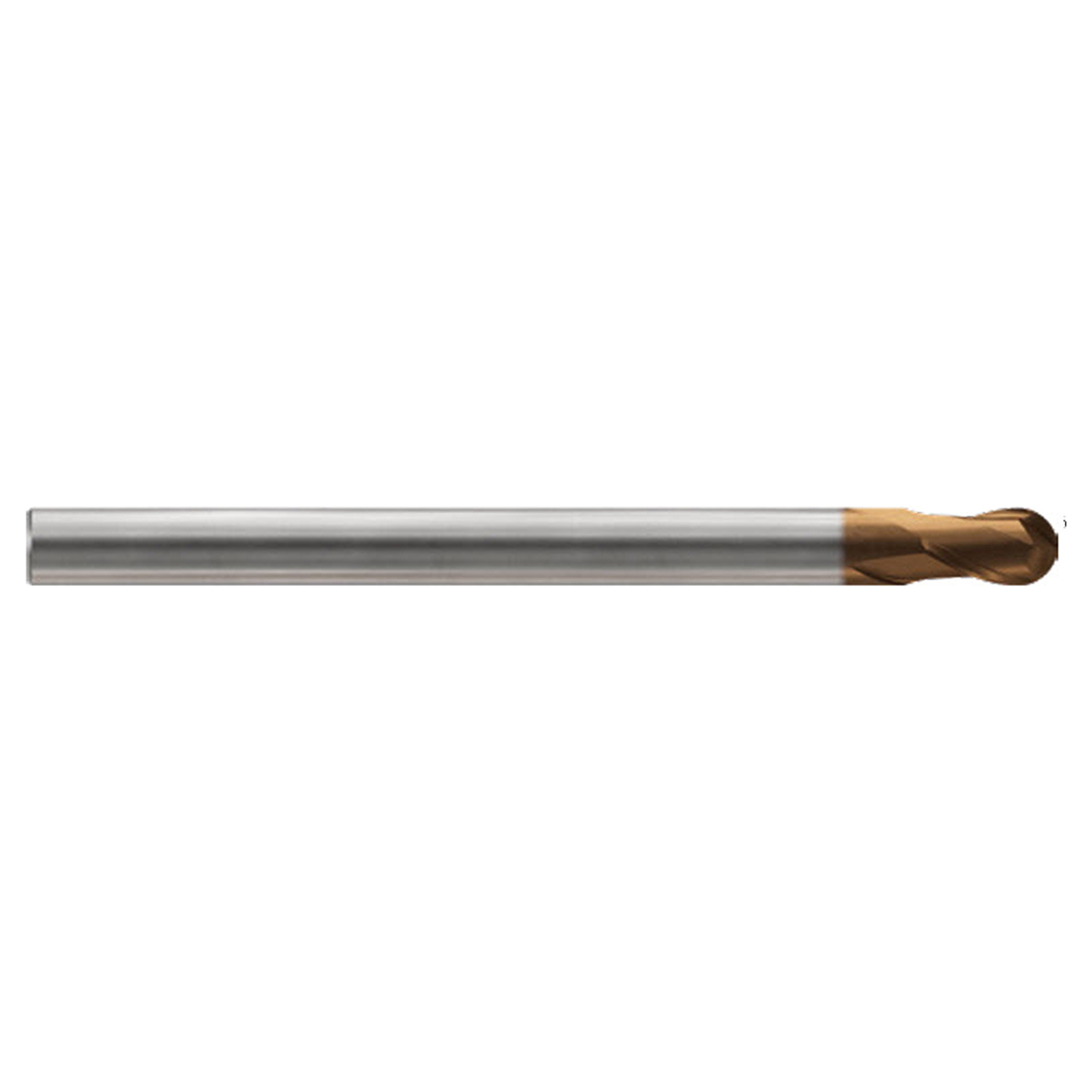

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Diameter (Inch):
17/27"
Cutting Diameter (Decimal Inch):
0.6300"
Cutting Diameter (mm):
16.00mm
Shank Diameter (Inch):
17/27"
Shank Diameter (Decimal Inch):
0.6290"
Shank Diameter (mm):
16.00mm
Length of Cut (Inch):
17/18"
Length of Cut (Decimal Inch):
0.9450"
Length of Cut (mm):
24.00mm
Overall Length (Inch):
5-22/43"
Overall Length (Decimal Inch):
5.5110"
Overall Length (mm):
140.00mm
Number of Flutes:
2
Shank Style:
Plain
Material:
Carbide
Cutting Direction:
Right Hand
Helix Angle:
30 Degree
Finish/Coating:
C-Coating
