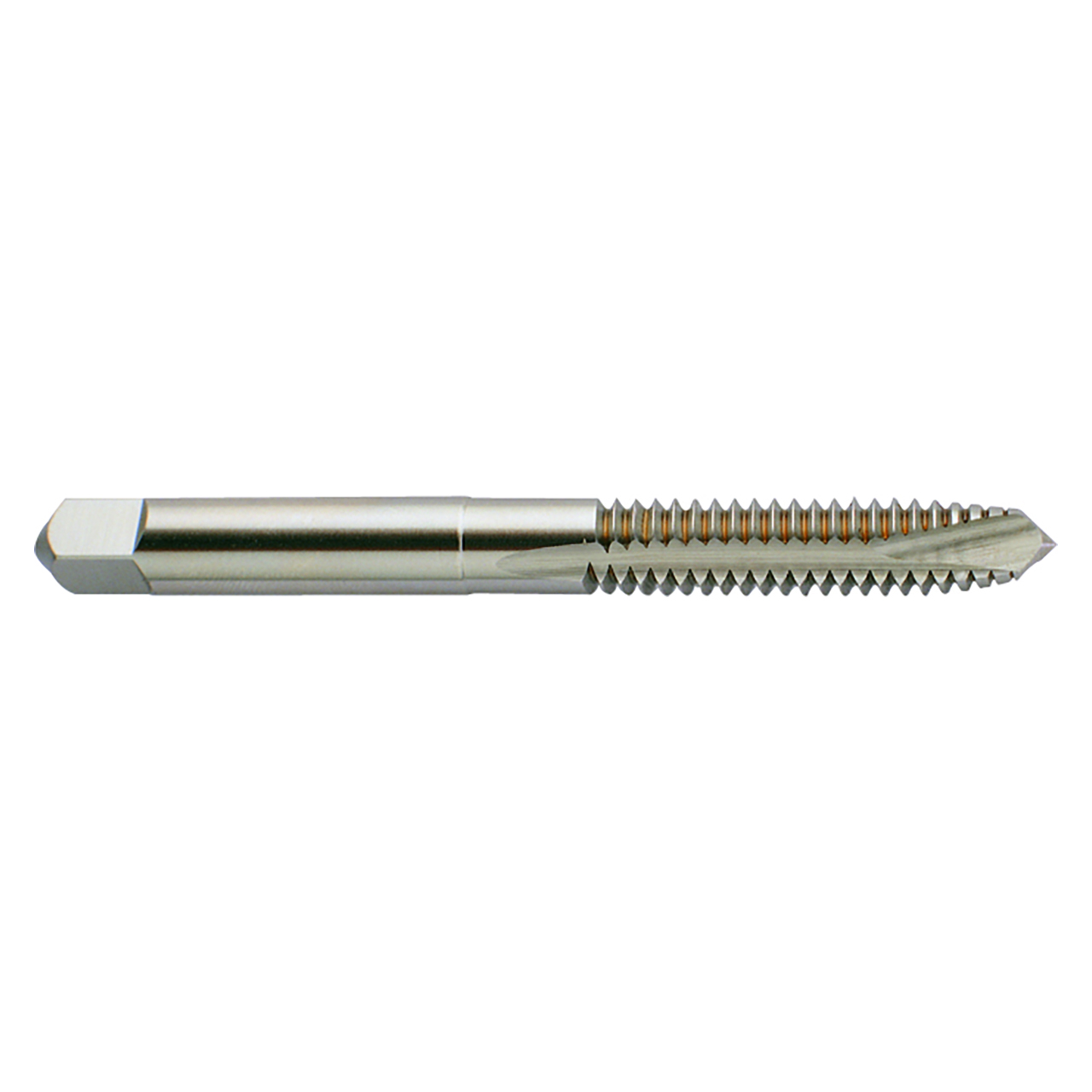

Product Specifications
| EDP Number | J0744 |
| Size & Pitch | 7/8-9 |
| Diameter (Decimal Inch) | 0.8750" |
| Diameter (mm) | 22.23mm |
| Overall Length (Decimal Inch) | 4.6900" |
| Length/Diameter | 3.0 x D |
| Coolant Through | No |
| Overall Length (mm) | 119.13mm |
| Thread Length (Decimal Inch) | 2.2200" |
| Thread Length (mm) | 56.39mm |
| Square Length (Decimal Inch) | 0.7500" |
| Square Length (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.6970" |
| Shank Diameter (mm) | 17.70mm |
| Square Size (Decimal Inch) | 0.5230" |
| Square Size (mm) | 13.28mm |
| Drill Size (Decimal Inch) | 0.7740" |
| Drill Size (mm) | 19.66mm |
| Useable Length (mm) | 56.39mm |
| Useable Length (Decimal Inch) | 2.2200" |
| Connection (Decimal Inch) | 0.697 x 0.523" |
| Connection (mm) | 17.7 x 13.28mm |
| Series | J0 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Thread Series | UNC |
| Pitch Limit | H4 |
| Blank Standard | 302 |
| Helix Angle (Degree) | 0 Degree |
| Finish | Bright |
| Shank Type | Square |
| Trade Name | YG Tap GP |
| Tap Type | SPPT |
| Number of Flute | 3 |
| Material | HSSE-V3 |
| Product Type | Spiral Point Tap |
