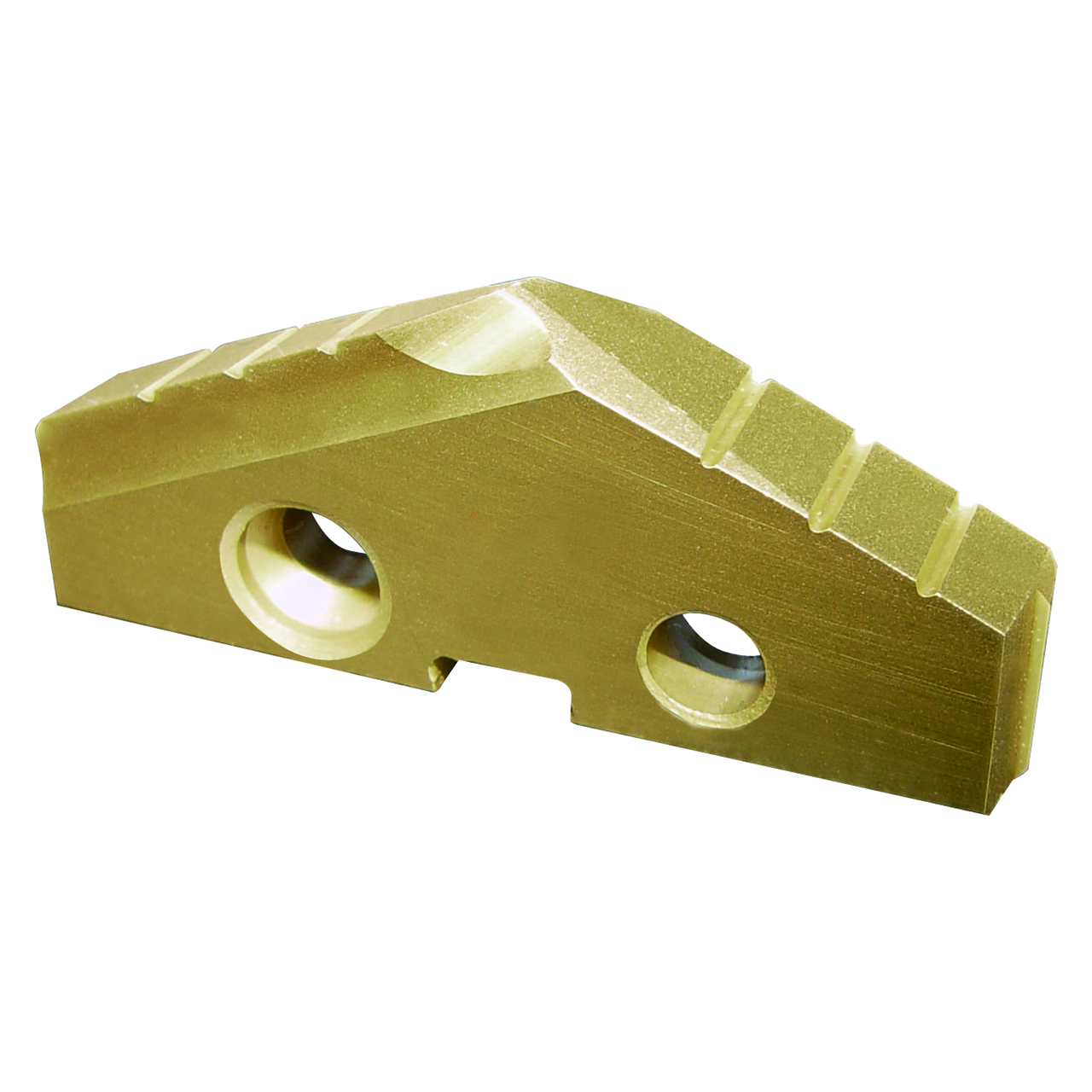

Product Specifications
| EDP Number | S03208 |
| Diameter (Decimal Inch) | 1.0600" |
| Diameter (Inch) | 1-1/16" |
| Diameter (mm) | 27.00mm |
| Thickness (Decimal Inch) | 0.1890" |
| Thickness (Inch) | 3/16" |
| Thickness (mm) | 4.80mm |
| Insert Height (Decimal Inch) | 0.6410" |
| Insert Height (Inch) | 25/39" |
| Insert Height (mm) | 16.28mm |
| Series | S03 |
| Point Angle (Degree) | 132 Degree |
| Holder Type | Series 2 |
| Grade | M4 |
| Trade Name | YG Spade Drill HSS |
| Application | P,M,K,N |
| Coating | TiAlN |
| Material | HSS |
| Product Type | Spade Drill Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Series:
S03
Diameter (mm):
27.00mm
Series Code/Seat Size:
Series 2
Material:
HSS
Finish/Coating:
TiAlN
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1890"
Thickness (mm):
4.80mm
Included Angle:
132 Degree
interval quantity:
1
