Product Specifications
| EDP Number | SEMD98150 |
| Diameter (Decimal Inch) | 0.5906" |
| Diameter (Inch) | 13/22" |
| Diameter (mm) | 15.00mm |
| Shank Diameter (Decimal Inch) | 0.6299" |
| Shank Diameter (Inch) | 17/27" |
| Shank Diameter (mm) | 16.00mm |
| Length of Cut (Decimal Inch) | 1.1024" |
| Length of Cut (Inch) | 1 4/39" |
| Length of Cut (mm) | 28.00mm |
| Overall Length (Decimal Inch) | 5.5118" |
| Overall Length (Inch) | 5-22/43" |
| Overall Length (mm) | 140.00mm |
| Ball Nose Radius (Decimal Inch) | 0.2953" |
| Ball Nose Radius (Inch) | 13/44" |
| Ball Nose Radius (mm) | 7.50mm |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 2 |
| Cut Type | Center Cut |
| Corner Type | Ball Nose |
| Series | SEMD98 |
| Material | Carbide |

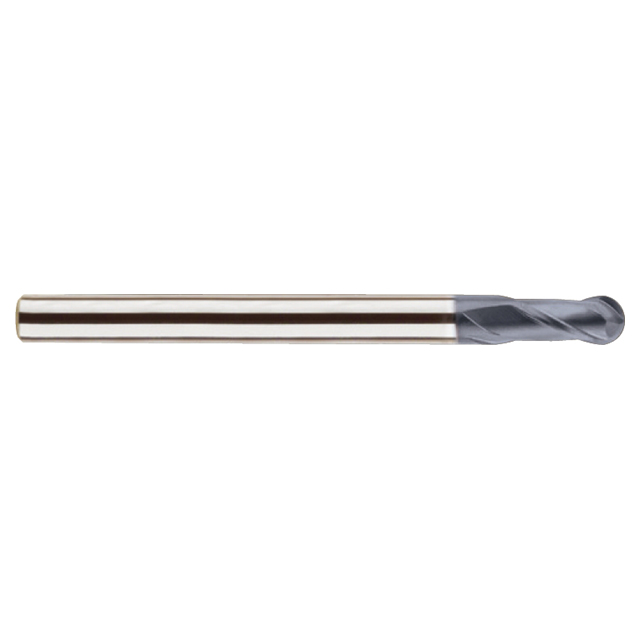

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Number of Flutes:
2
Finish/Coating:
AlCrN
Helix Angle:
30 Degree
interval quantity:
1
