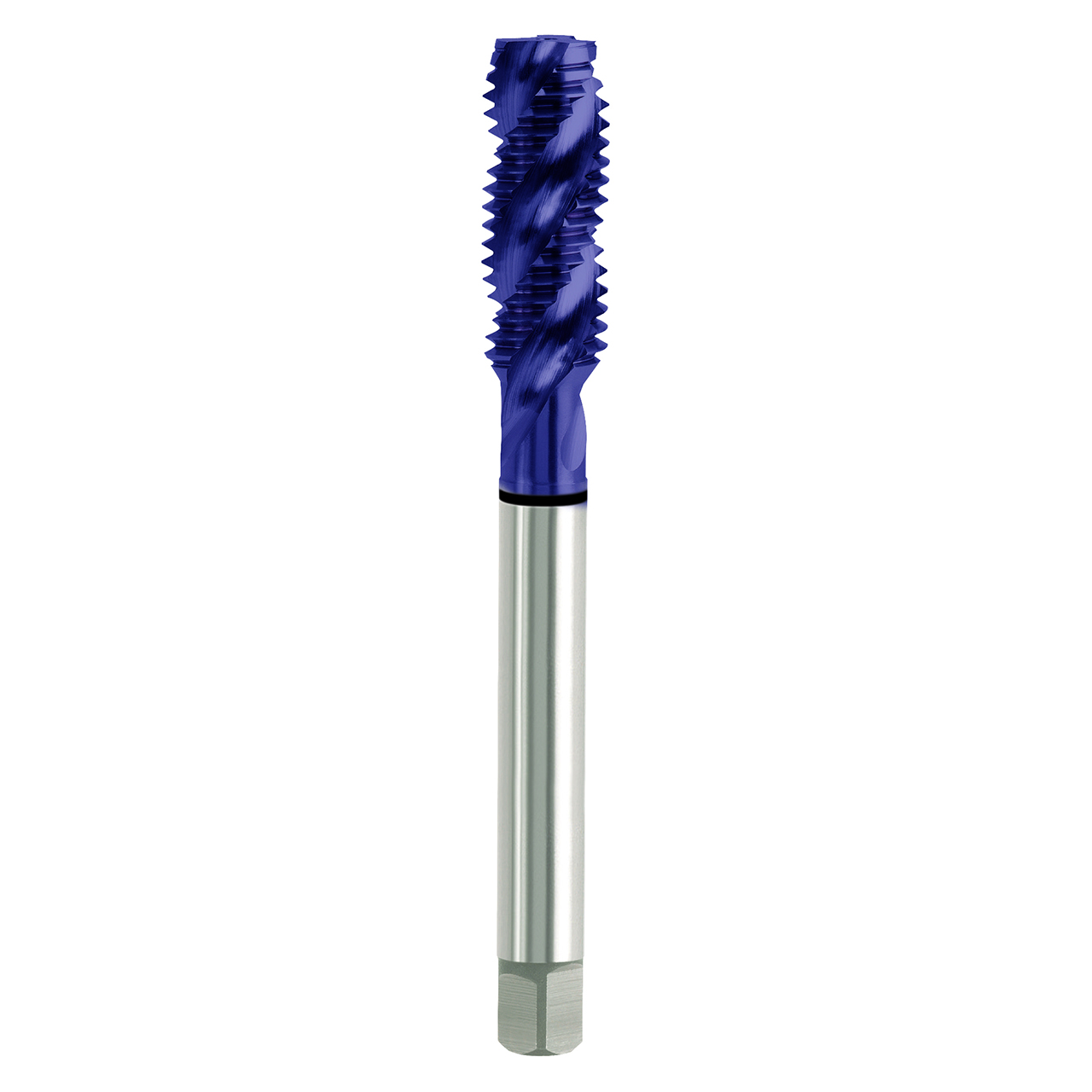

Performs well on all materials
Features:
| Size Type | ANSI |
| Thread Size | 5/16"-18 |
| Thread Limit | H5 |
| Chamfer Style | Modified Bottoming |
| Number of Flutes | 3 |
| Finish Coating | TiCN |
| Tool Material | High Speed Steel EX |
| Cutting Direction | Right Hand |
| Chamfer | 2 to 3 lead |
| Quantity Break | 6 |
| Coating | TiCN |
| Flute Length | .472" |
| Flute Shape | Spiral |
| General Application | Tapping |
| H Limit | H5 |
| Helix Direction | Right Hand |
| Hole Style | Blind Hole |
| Limit | H5 |
| Material To Be Machined | Multi Material |
| Number of Threads Per Inch | 18 |
| Overall Length | 2.72" |
| Pitch | 18 |
| Size | 5/16" |
| Size | 5/16 - 18 UNC |
| Square Length | .375" |
