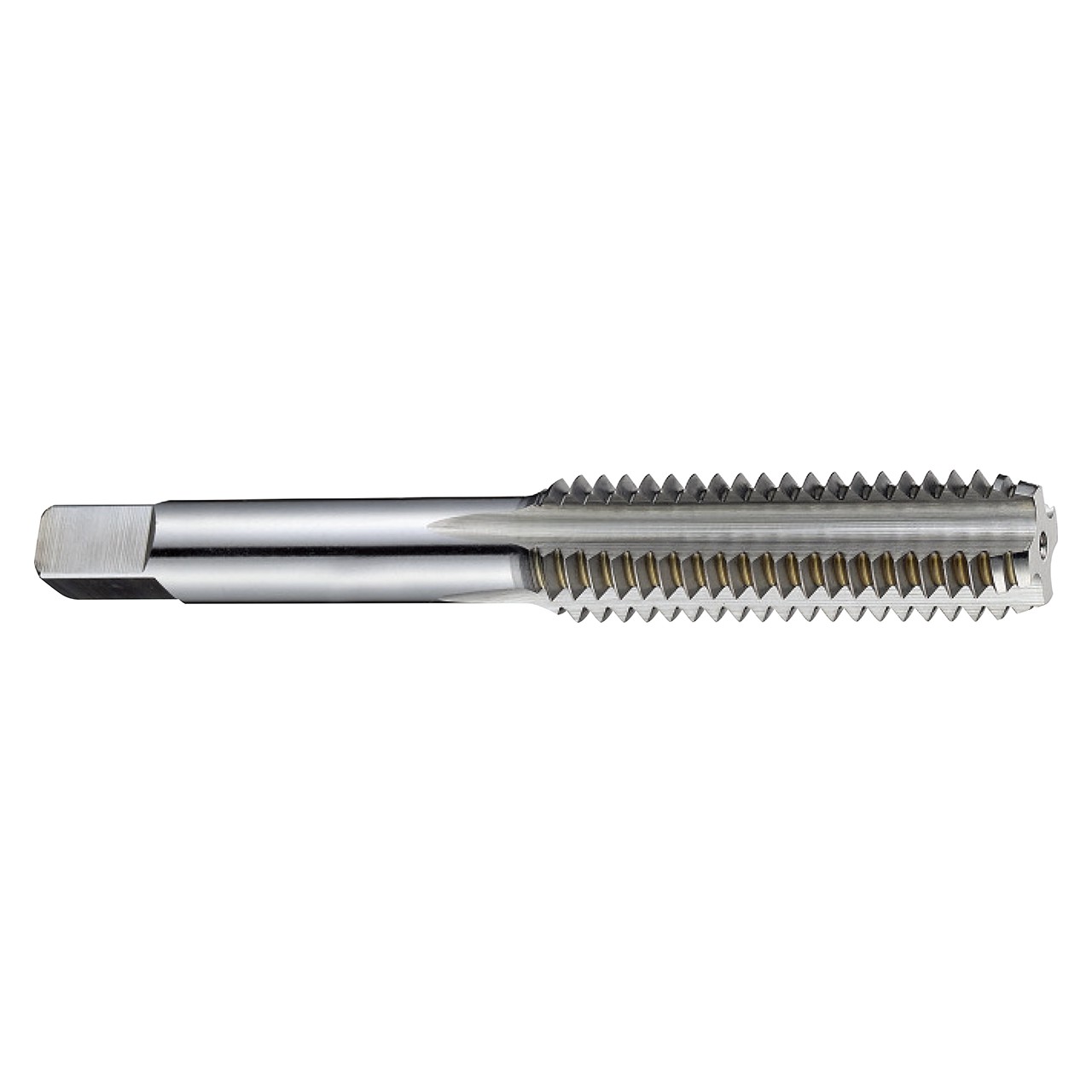

Product Specifications
| Manufacturer Part Number | T6316388 |
| Diameter (Decimal Inch) | 0.2160" |
| Diameter (mm) | 5.49mm |
| OAL (Decimal Inch) | 2.3800" |
| OAL (mm) | 60.45mm |
| Thread Length (Decimal Inch) | 0.9400" |
| Thread Length (mm) | 23.88mm |
| Square Length (Decimal Inch) | 0.2800" |
| Square Length (mm) | 7.11mm |
| Shank Diameter (Decimal Inch) | 0.2200" |
| Shank Diameter (mm) | 5.60mm |
| Square Size (Decimal Inch) | 0.1650" |
| Square Size (mm) | 4.19mm |
| Drill Size (Decimal Inch) | 0.1835" |
| Drill Size (mm) | 4.66mm |
| Useable Length (Decimal Inch) | 0.9400" |
| Useable Length (mm) | 23.88mm |
| Length/Diameter | 2xD |
| Number of Flutes | 4 |
| Thread Diameter (Inch) | #12 |
| Thread Pitch | 28 TPI |
| Series | T6316 |
| Thread Series | UNF |
| Pitch Limit | H3 |
| Chamfer Length | 1.5P-2P |
| Shank Type | Square |
| Chamfer Type | Bottoming |
| Helix Angle | 0 Degree |
| Finish | Oxide |
| Material | HSS |
| Blank Standard | 302 |
| Tap Type | Hand |
