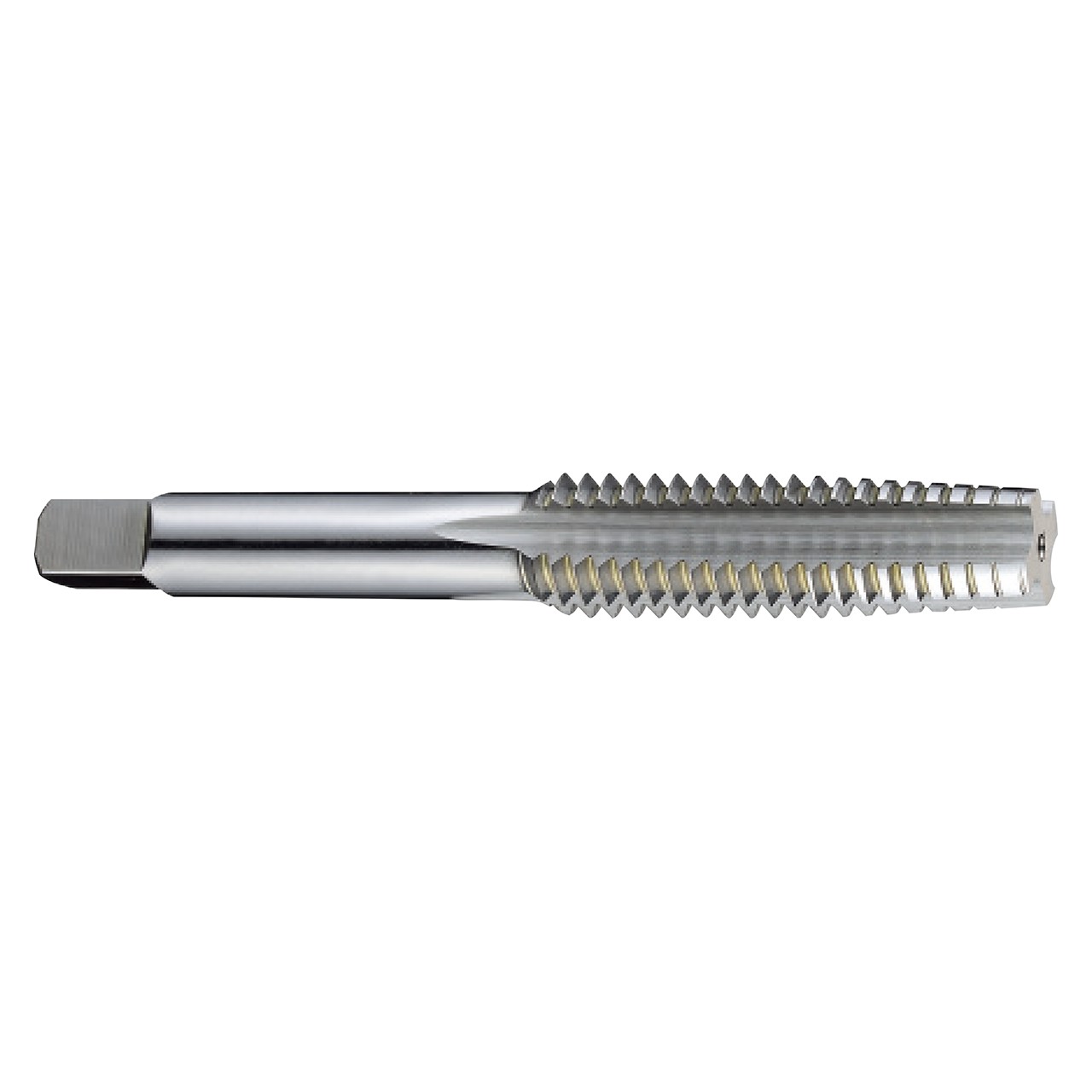

Product Specifications
| Manufacturer Part Number | T7316346 |
| Diameter (Decimal Inch) | 0.1900" |
| Diameter (mm) | 4.83mm |
| OAL (Decimal Inch) | 2.3800" |
| OAL (mm) | 60.45mm |
| Thread Length (Decimal Inch) | 0.8800" |
| Thread Length (mm) | 22.35mm |
| Square Length (Decimal Inch) | 0.2500" |
| Square Length (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.1940" |
| Shank Diameter (mm) | 4.90mm |
| Square Size (Decimal Inch) | 0.1520" |
| Square Size (mm) | 3.86mm |
| Drill Size (Decimal Inch) | 0.1616" |
| Drill Size (mm) | 4.10mm |
| Useable Length (Decimal Inch) | 0.8800" |
| Useable Length (mm) | 22.35mm |
| Length/Diameter | 2xD |
| Number of Flutes | 4 |
| Thread Diameter (Inch) | #10 |
| Thread Pitch | 32 TPI |
| Series | T7316 |
| Thread Series | UNF |
| Pitch Limit | H3 |
| Chamfer Length | 7P-9P |
| Shank Type | Square |
| Chamfer Type | Taper |
| Helix Angle | 0 Degree |
| Finish | Bright |
| Material | HSS |
| Blank Standard | 302 |
| Tap Type | Hand |
