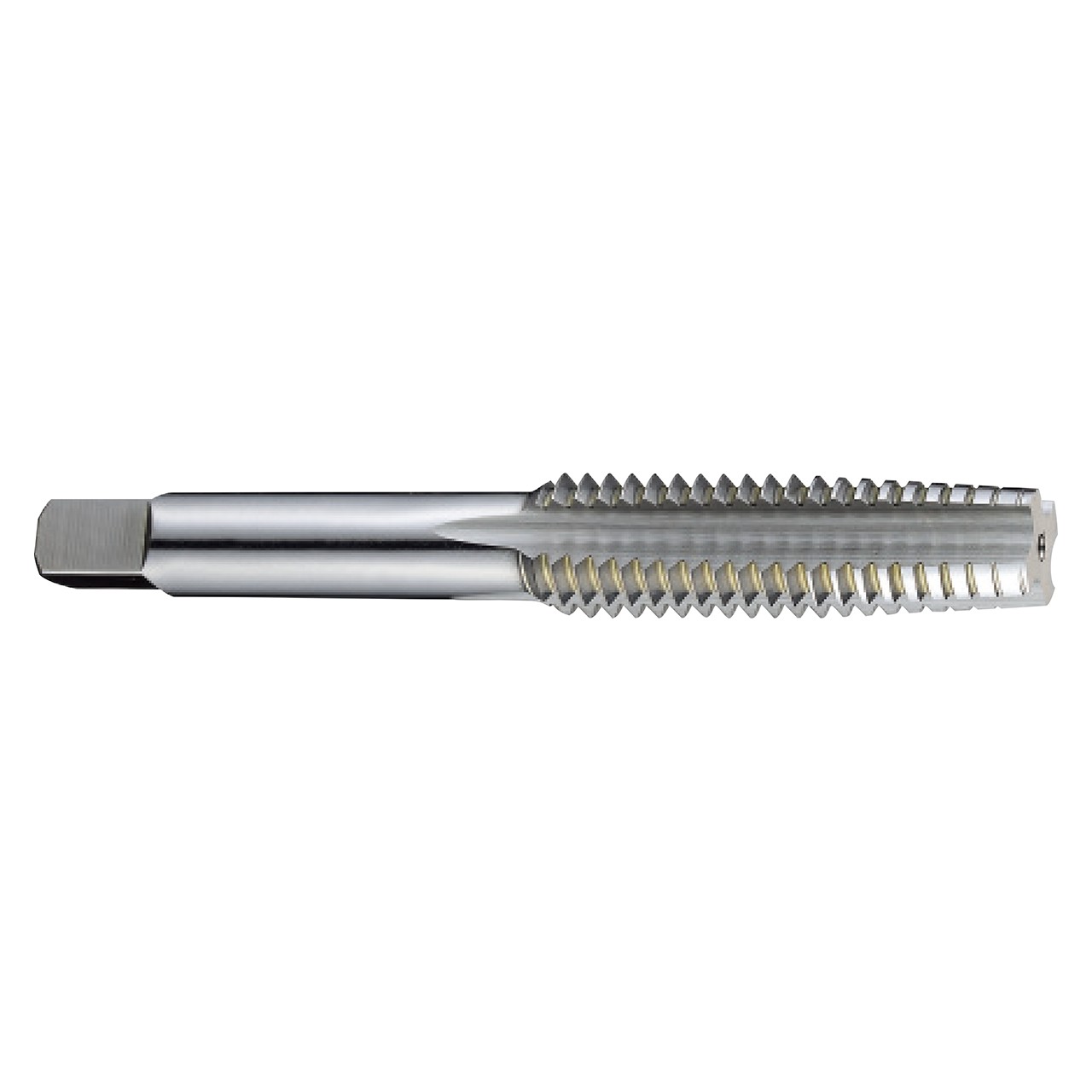

YG1 T7316966 | UNF 1.5"-12 Thread x 1.5000" Diameter x 1.2330" Shank x 6.3800" OAL 6 Flute Bright Coated HSS Straight Flute Tap

$170.90
SKU:
15035865
Weight:
3.27 LBS
Shipping:
Free Shipping

Product Specifications
Manufacturer Part NumberT7316966
Diameter (Decimal Inch)1.5000"
Diameter (mm)38.10mm
OAL (Decimal Inch)6.3800"
OAL (mm)162.05mm
Thread Length (Decimal Inch)3.0000"
Thread Length (mm)76.20mm
Square Length (Decimal Inch)1.1300"
Square Length (mm)28.70mm
Shank Diameter (Decimal Inch)1.2330"
Shank Diameter (mm)31.32mm
Square Size (Decimal Inch)0.9250"
Square Size (mm)23.5mm
Drill Size (Decimal Inch)1.4242"
Drill Size (mm)36.18mm
Useable Length (Decimal Inch)3.0000"
Useable Length (mm)76.20mm
Length/Diameter2xD
Number of Flutes6
Thread Diameter (Inch)1-1/2"
Thread Pitch12 TPI
SeriesT7316
Thread SeriesUNF
Pitch LimitH4
Chamfer Length7P-9P
Shank TypeSquare
Chamfer TypeTaper
Helix Angle0 Degree
FinishBright
MaterialHSS
Blank Standard302
Tap TypeHand
