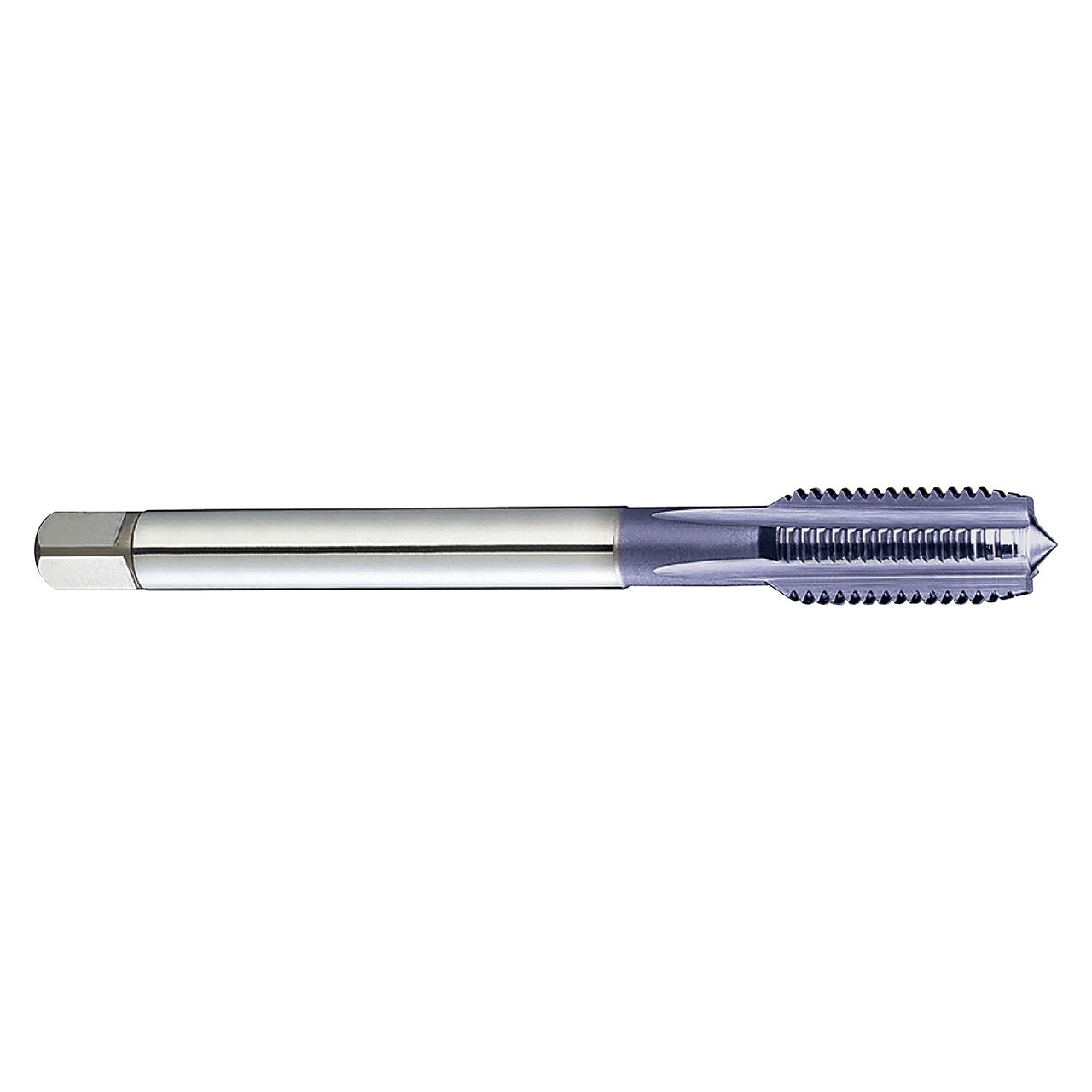

Product Specifications
| Diameter (Decimal Inch) | TKS63726 |
| Diameter (Decimal Inch) | 0.7874" |
| Diameter (mm) | 20.00mm |
| Overall Length (Decimal Inch) | 4.4700" |
| Overall Length (mm) | 113.54mm |
| Thread Length (Decimal Inch) | 0.5910" |
| Thread Length (mm) | 15.01" |
| Square Length (Decimal Inch) | 0.6900" |
| Square Length (mm) | 17.53mm |
| Shank Diameter (Decimal Inch) | 0.6520" |
| Shank Diameter (mm) | 0.4890" |
| Square Size (Decimal Inch) | 0.4890" |
| Square Size (mm) | 12.42mm |
| Neck Diameter (Decimal Inch) | 0.6400" |
| Neck Diameter (mm) | 16.26mm |
| Drill Size (Decimal Inch) | 0.7337" |
| Drill Size (mm) | 18.64mm |
| Useable (Decimal Inch) | 2.4800" |
| Useable (mm) | 62.99mm |
| Neck Length (Decimal Inch) | 2.4800" |
| Neck Length (mm) | 62.99mm |
| Neck Length (mm) | STFL |
| Number of Flutes | 4 |
| Size | M20 |
| Pitch | 1.5 TPI |
| Thread Series | MF |
| Pitch Limit | D6 |
| Chamfer Type | Modified Bottom Chamfer Type |
| Chamfer Length | 2P-3P |
| Coating | TICN |
| Material | HSS-PM |
| Blank Standard | 302A |
| Helix Angle | 45 Degree |
| Coolant Through | No |
| Product Type | Straight Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Tap Type:
STFL
Number of Flutes:
4
Chamfer:
Modified Bottom
Material:
HSS-PM
Finish/Coating:
TICN
Through Coolant:
No
