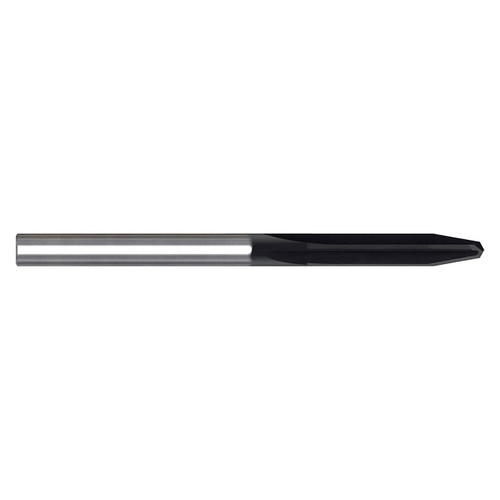

Drill ream process in one shot suitable for hand-held tools Low pressure when feeding with the tool. H6 shank tolerance for high precision tool holders. YG-1 special CVD coating for extended tool life and better abrasion resistance.
Features:
Product Specifications
| Manufacturer Part Number | UDM5P1AB0375 |
| Drill Diameter (Inch) | 3/8" |
| Drill Diameter (Decimal Inch) | 0.3750" |
| Drill Diameter (mm) | 9.53mm |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (mm) | 9.53mm |
| Flute Length (Inch) | 2" |
| Flute Length (Decimal Inch) | 2.0000" |
| Flute Length (mm) | 50.80mm |
| Overall Length (Inch) | 6" |
| Overall Length (Decimal Inch) | 6.0000" |
| Overall Length (mm) | 152.40mm |
| Number of Flutes | 4 |
| Series | UDM5P1AB |
| Point Angle | 118 Degree |
| Shank Type | Plain |
| Application | CFRP/GFRP |
| Machine | Hand Held |
| Operation | Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Reamer Diameter (Inch):
3/8"
Reamer Diameter (Decimal Inch):
0.3750"
Reamer Diameter (mm):
9.53mm
Flute Length (Inch):
2"
Flute Length (Decimal Inch):
2.0000"
Flute Length (mm):
50.80mm
Shank Type:
Plain
Material:
Micron Grain Carbide
