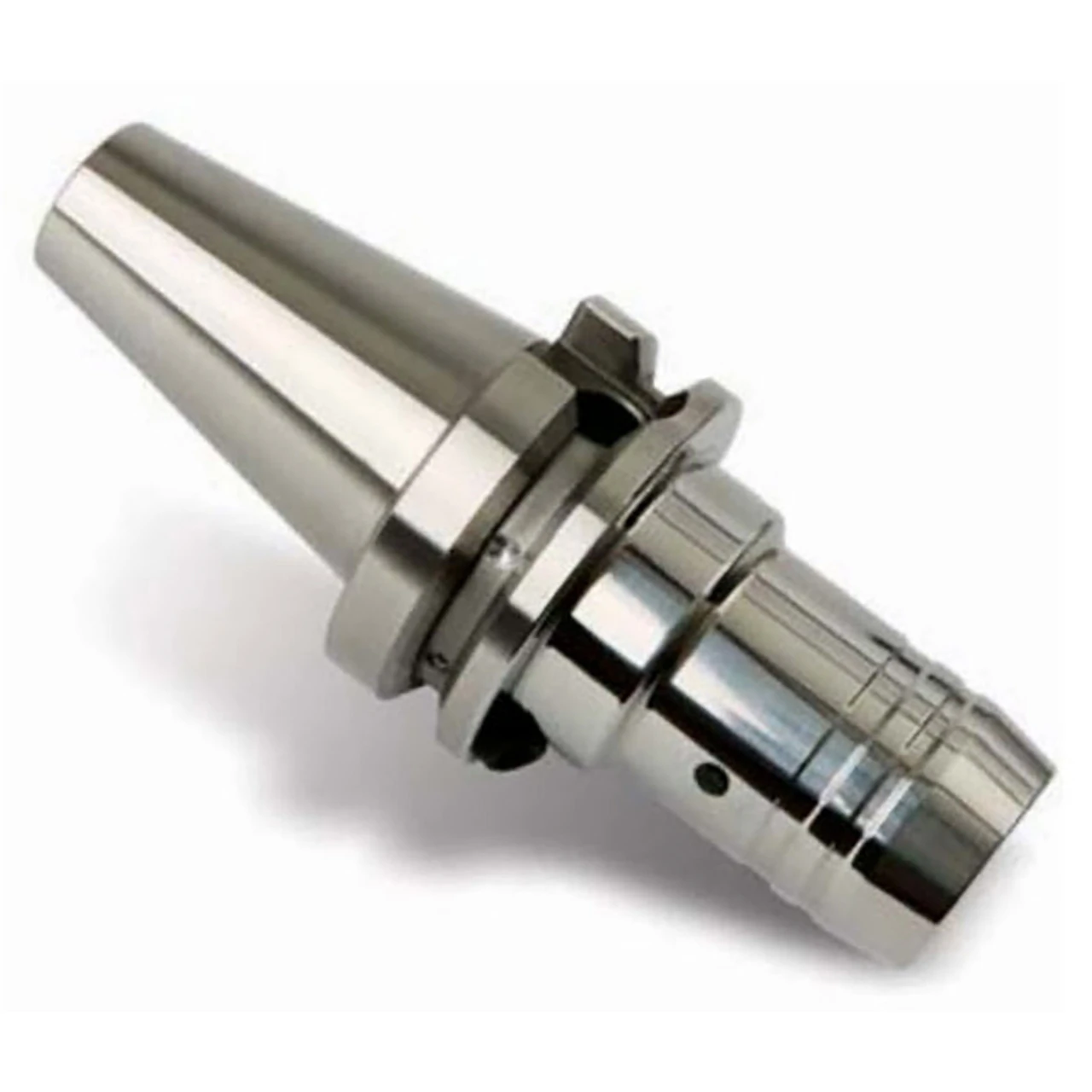

Product Specifications
| EDP Number | WH034 |
| Bore Diameter (Inch) | 1-1/4" |
| Bore Diameter (mm) | 31.75mm |
| Nose Diameter (mm) | 59.99mm |
| Bore Diameter (Decimal Inch) | 1.25" |
| Nose Diameter (Inch) | 2-3/8" |
| Nose Diameter (Decimal Inch) | 2.362" |
| Gage Length (Decimal Inch) | 4.134" |
| Gage Length (Inch) | 4-1/8" |
| Gage Length (mm) | 105mm |
| Maximum Tool Depth inch (l2) | 2.165" |
| Maximum Tool Depth fraction (l2) | 2-3/16" |
| Maximum Tool Depth metric (L2) | 54.99mm |
| Grade | M16x1.0 |
| Taper Accuracy | AT3 |
| Grade Value | 2.5 |
| RPM | 25000 |
| Run Out (at 3D) | <0.00012" |
| Coolant system | AD/B |
| Taper # | BT40 |
