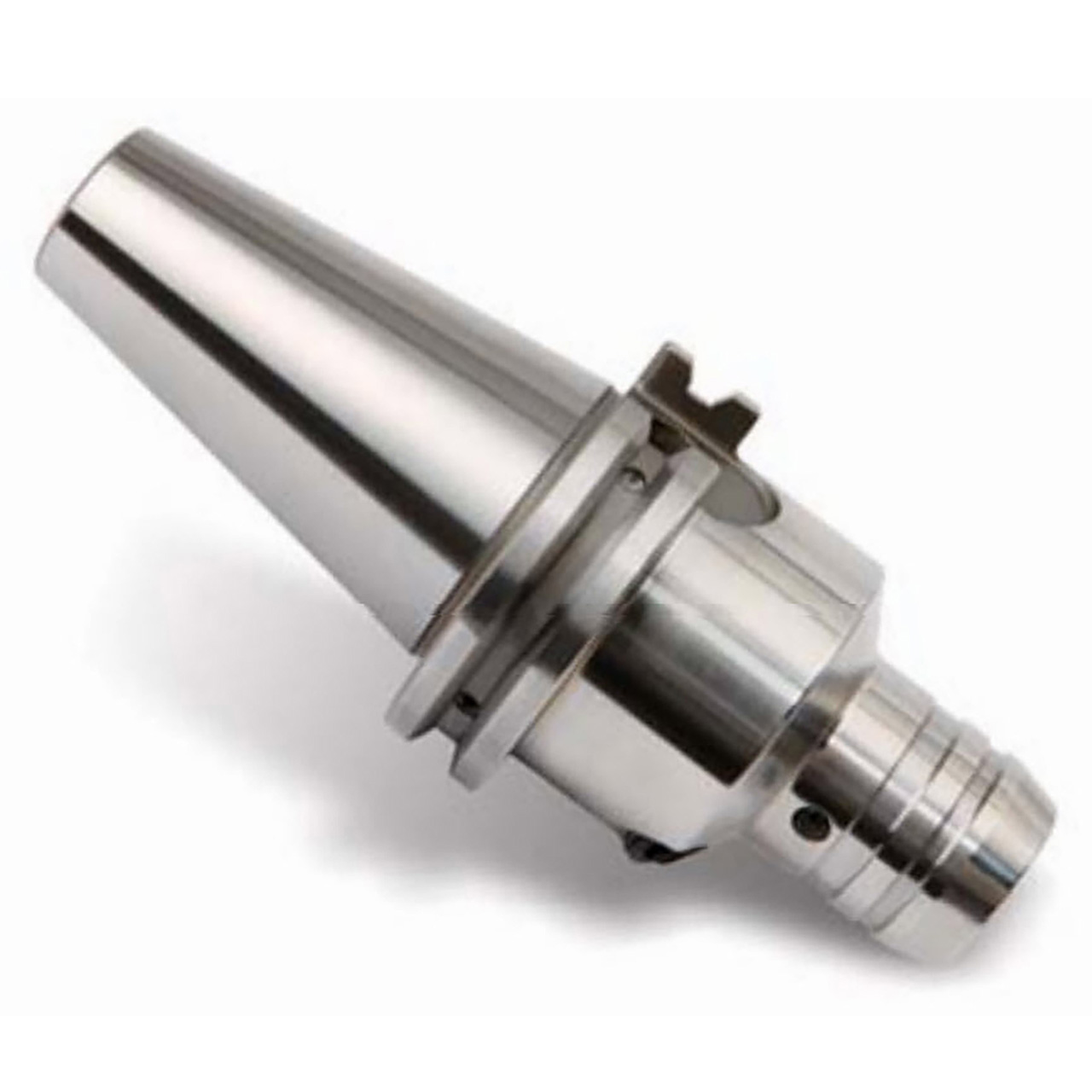

Product Specifications
| EDP Number | WK032 |
| Shoulder Diameter (Inch) | 3-1/8" |
| Shoulder Diameter (mm) | 80.01mm |
| Shoulder Diameter (Decimal Inch) | 3.15" |
| Bore Diameter (Inch) | 1-1/4" |
| Bore Diameter (mm) | 31.75mm |
| Nose Diameter (mm) | 62.99mm |
| Bore Diameter (Decimal Inch) | 1.25" |
| Nose Diameter (Inch) | 2-1/2" |
| Nose Diameter (Decimal Inch) | 2.48" |
| Gage Length (Decimal Inch) | 4" |
| Gage Length (Inch) | 4" |
| Gage Length (mm) | 101.60mm |
| Bore Depth (Decimal Inch) | 1.378" |
| Bore Depth (Inch) | 1-3/8" |
| Bore Depth (mm) | 35mm |
| Maximum Tool Depth inch (l2) | 2.165" |
| Maximum Tool Depth fraction (l2) | 2-3/16" |
| Maximum Tool Depth metric (L2) | 54.99mm |
| Grade | M16x1.0 |
| Taper Accuracy | AT3 |
| Grade Value | 2.5 |
| RPM | 25000 |
| Run Out (at 3D) | <0.00012" |
| Coolant system | AD/B |
| Taper # | CAT40 |
