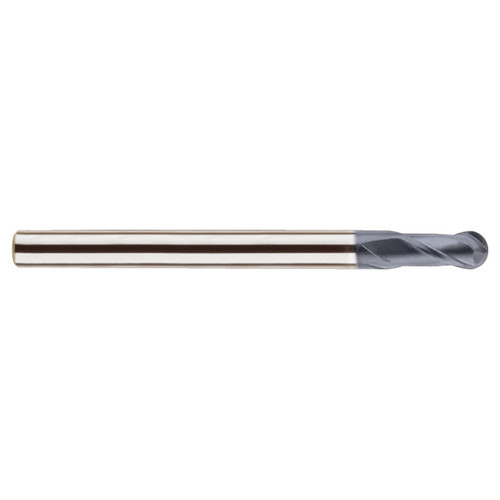

Product Specifications
| EDP Number | XGMF15048 |
| Diameter (Decimal Inch) | 0.7500" |
| Diameter (Inch) | 3/4" |
| Diameter (mm) | 19.05mm |
| Neck Diameter (Decimal Inch) | 0.7110" |
| Neck Diameter (Inch) | 32/45" |
| Neck Diameter (mm) | 18.06mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Decimal Inch) | 0.7500" |
| Length of Cut (Inch) | 3/4" |
| Length of Cut (mm) | 19.05mm |
| Length Below Shank (Decimal Inch) | 1.1440" |
| Length Below Shank (Inch) | 1-1/7" |
| Length Below Shank (mm) | 29.06mm |
| Coupling Diameter (Decimal Inch) | 0.4130" |
| Coupling (Inch) | 19/46" |
| Coupling (mm) | 10.49mm |
| Wrench Width (Decimal Inch) | 0.6690" |
| Wrench Width (Inch) | 2/3" |
| Wrench Width (mm) | 16.99mm |
| Ball Nose Radius (Decimal Inch) | 0.3750" |
| Ball Nose Radius (Inch) | 3/8" |
| Ball Nose Radius (mm) | 9.53mm |
| Number of Flutes | 2 |
| Series | XGMF15 |
| Thread | M10 |
| Wrench Code | SPIS1700 |
| Helix Angle (Degree) | 30 Degree |
| Material | Carbide |
| Application | P |
| Cutting Direction | Right Hand |
| Cut Type | Center Cut |
| Type | Ball Nose |
| Product Type | Ball End Mill Head |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Helix Angle:
30 Degree
Center Cutting (yes/no):
Yes
Application:
P
interval quantity:
1
