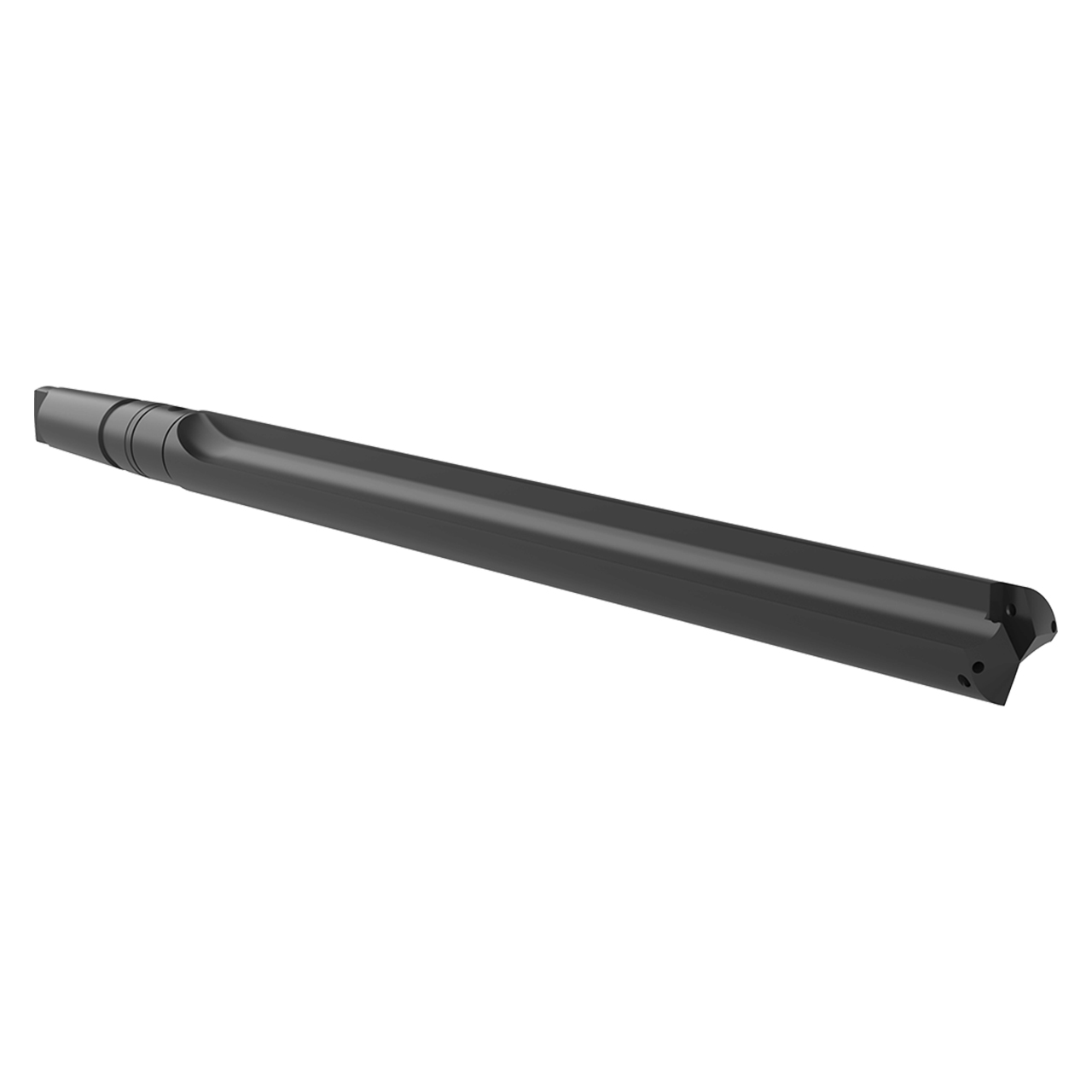

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 27040S-005I |
| Body Length (Inch) | 26" |
| Drill Depth (Inch) | 24-5/8" |
| Flute Type | Straight |
| Length Type | XL |
| Maximum Diameter (Inch) | 2-9/16" |
| Minimum Diameter (Inch) | 1-29/32" |
| Overall length (Inch) | 33-13/16" |
| Pipe Tap Side (Inch) | 1/4" |
| Series | 4 |
| Shank Diameter (Inch) | #5 MT |
| Shank Type | Morse Taper |
| Tool Reference Length (Inch) | 28-1/8" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
4
Minimum Drill Diameter (Inch):
1-29/32"
Minimum Drill Diameter (Decimal Inch):
1.9100"
Minimum Drill Diameter (mm):
48.42mm
Maximum Drill Diameter (Inch):
2-9/16"
Maximum Drill Diameter (Decimal Inch):
2.5600"
Maximum Drill Diameter (mm):
65.09mm
Shank Type:
Morse Taper
Flute Type:
Straight
