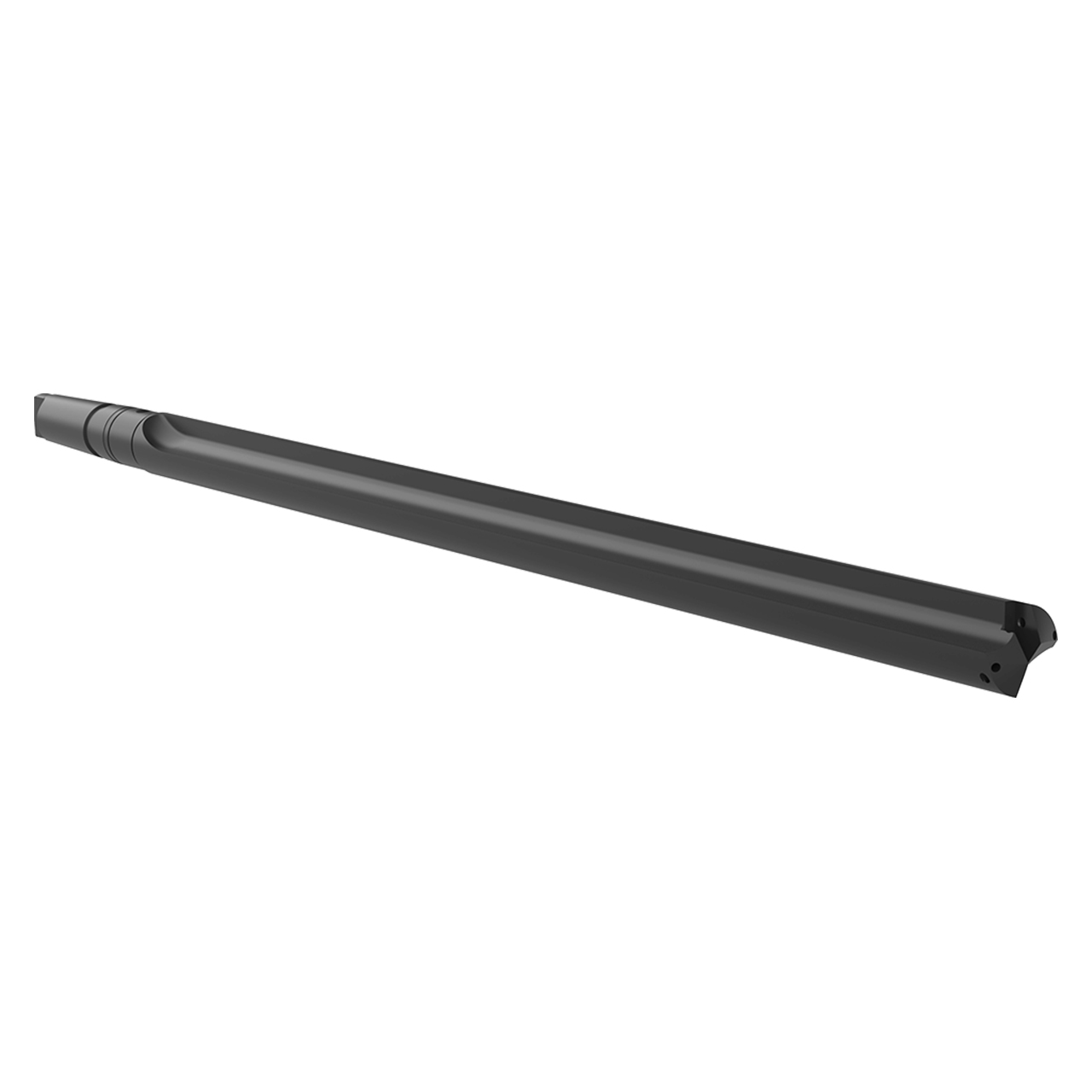

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 29040S-005I |
| Body Length (Inch) | 36" |
| Drill Depth (Inch) | 34-5/8" |
| Flute Type | Straight |
| Length Type | 3XL |
| Maximum Diameter (Inch) | 2-9/16" |
| Minimum Diameter (Inch) | 1-29/32" |
| Overall length (Inch) | 43-13/16" |
| Pipe Tap Side (Inch) | 1/4" |
| Series | 4 |
| Shank Diameter (Inch) | #5 MT |
| Shank Type | Morse Taper |
| Tool Reference Length (Inch) | 38-1/8" |
