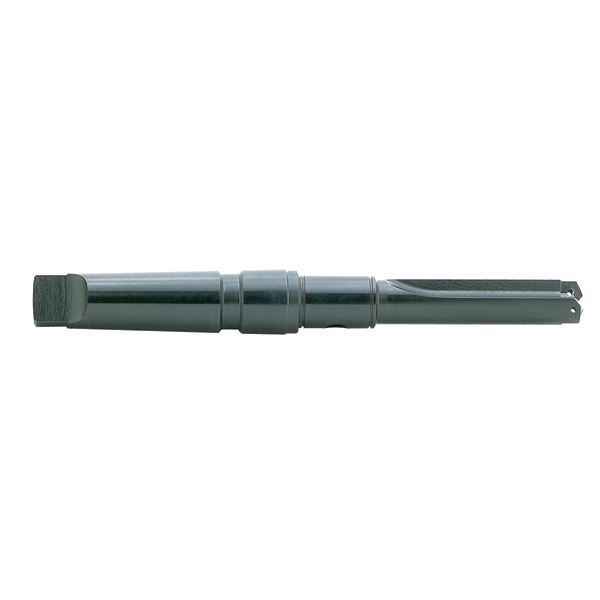

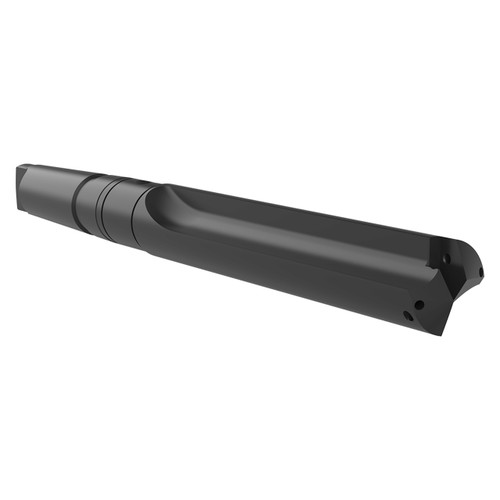

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
| # MFG | 24040S-005I |
| Body Length (Inch) | 10-1/2" |
| Drill Depth (Inch) | 9-1/8" |
| Flute Type | Straight |
| Length Type | Standard |
| Maximum Diameter (Inch) | 2-9/16" |
| Minimum Diameter (Inch) | 1-29/32" |
| Overall length (Inch) | 18-5/16" |
| Pipe Tap Side (Inch) | 1/4" |
| Series | 4 |
| Shank Diameter (Inch) | #5 MT |
| Shank Type | Morse Taper |
| Tool Reference Length (Inch) | 12-5/8" |
