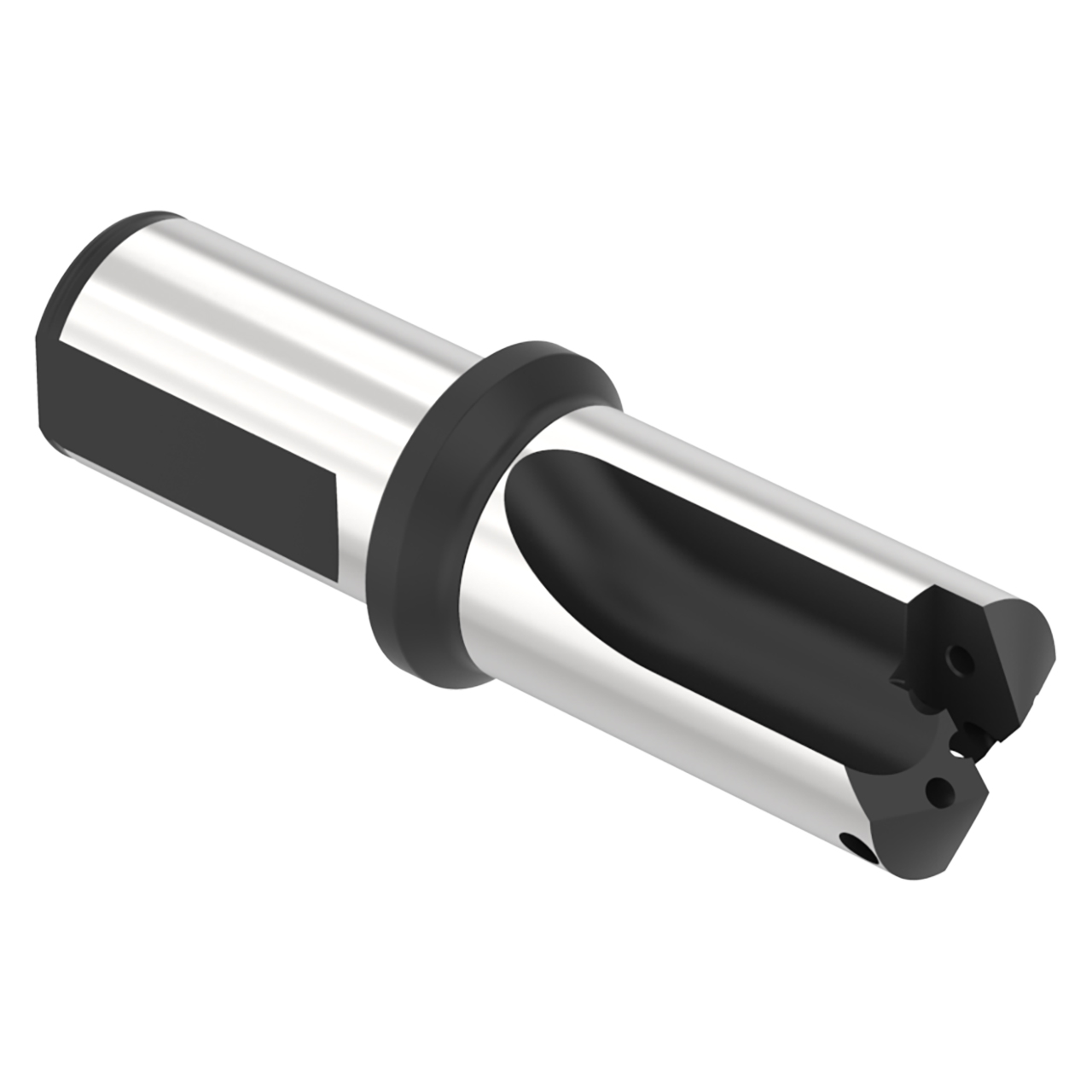

The T-A Pro is the culmination of years of application wins and losses, taking what was typically known as a general purpose tool and making it the go-to for all applications, providing a wider range and better cost per hole than competitive high performance tools.
Features:
- The advanced T-A Pro insert combines a coating and geometry specifically designed to achieve optimal results in ISO material drilling applications
- T-A Pro inserts can be used with the previous T-A insert holders
Product Specifications
| # MFG | HTA3C01-150F |
| Body Length (Decimal Inch) | 3.634" |
| Drill Depth (Decimal Inch) | 1.618" |
| Flute Type | Straight |
| Length Type | Stub |
| Maximum Diameter (Decimal Inch) | 1.882" |
| Minimum Diameter (Decimal Inch) | 1.614" |
| Overall Length (Decimal Inch) | 6.322" |
| Series | 3 |
| Shank Diameter (Inch) | 1-1/2" |
| Shank Length (Decimal Inch) | 2.688" |
| Shank Type | Flanged |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
3
Shank Type:
FLANGED
Shank Diameter (Inch):
1-1/2"
Overall Length (Inch):
6-21/64"
Overall Length (Decimal Inch):
6.32200"
Maximum Drill Depth (Inch):
1-5/8"
Maximum Drill Depth (Decimal Inch):
1.6180"
Flute Type:
Straight
interval quantity:
1
