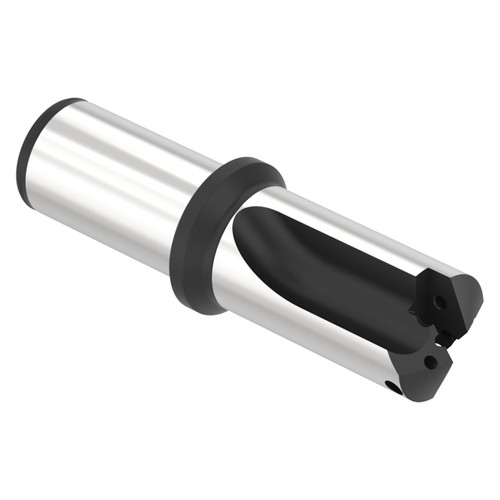

Allied Machine and Engineering HTA3D01-150F | 1-7/8" Diameter x 1-1/2" Shank Stub Length Flanged Indexable Spade Drill

SKU: 23143081 Weight: 3.08 LBS Minimum Purchase: 1 unit
UPC:
$425.00
Shipping: Free Shipping

About This Item

The T-A Pro is the culmination of years of application wins and losses, taking what was typically known as a general purpose tool and making it the go-to for all applications, providing a wider range and better cost per hole than competitive high performance tools.

Features:

  • The advanced T-A Pro insert combines a coating and geometry specifically designed to achieve optimal results in ISO material drilling applications
  • T-A Pro inserts can be used with the previous T-A insert holders

Product Specifications
# MFGHTA3D01-150F
Body Length (Decimal Inch)3.634"
Drill Depth (Decimal Inch)1.618"
Flute TypeStraight
Length TypeStub
Maximum Diameter (Decimal Inch)1.882"
Minimum Diameter (Decimal Inch)1.748"
Overall Length (Decimal Inch)6.322"
Series3
Shank Diameter (Inch)1-1/2"
Shank Length (Decimal Inch)2.688"
Shank TypeFlanged
