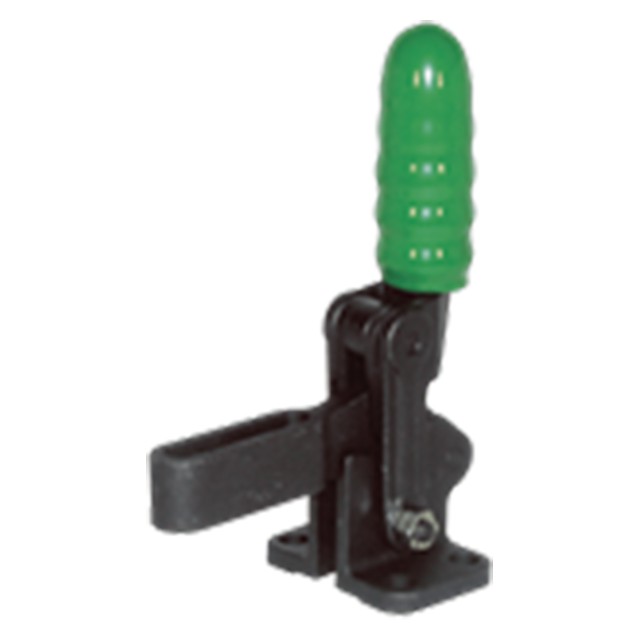

Complete Clamps-100 Series-750lbs.
CL-100-HVTC
Open Arm, Flanged Base
Heavy-duty automotive-type production clamp designed for extreme durability. Precision, close-tolerance steel components throughout provide exceptionally smooth operation. Guided-arm feature provides positive lateral arm support. These clamps are built to withstand abuse. With just occasional lubrication, they will provide extremely long service life.
Application Information
Straight-base version is ideal for welding onto a center plate.
Clamping Action
Open Position

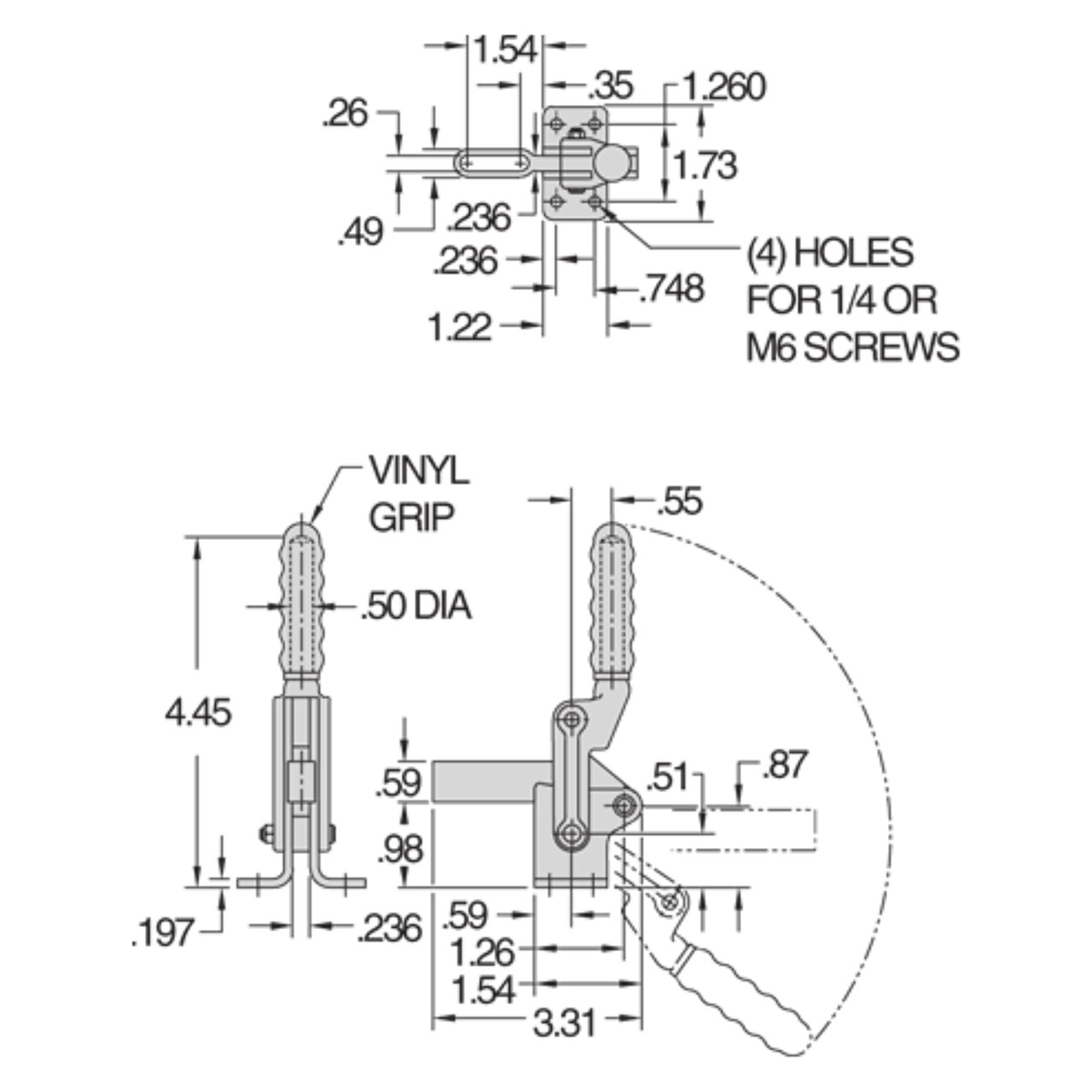

Materials and Construction
Rugged alloy steel handle fork. Steel base and clamping arm. All pivot pins are are hardened and ground, running either in hardened bushings or the close-tolerance holes of hardened parts. The bottom pivot is a precision bolt which can be adjusted, if desired, to fine tune the amount of free play. Black oxide Finish. DFARS and RoHS compliant.
Parts Specification
Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
Open Arm, Flanged Base | 750lbs. | 1.0lbs. |
