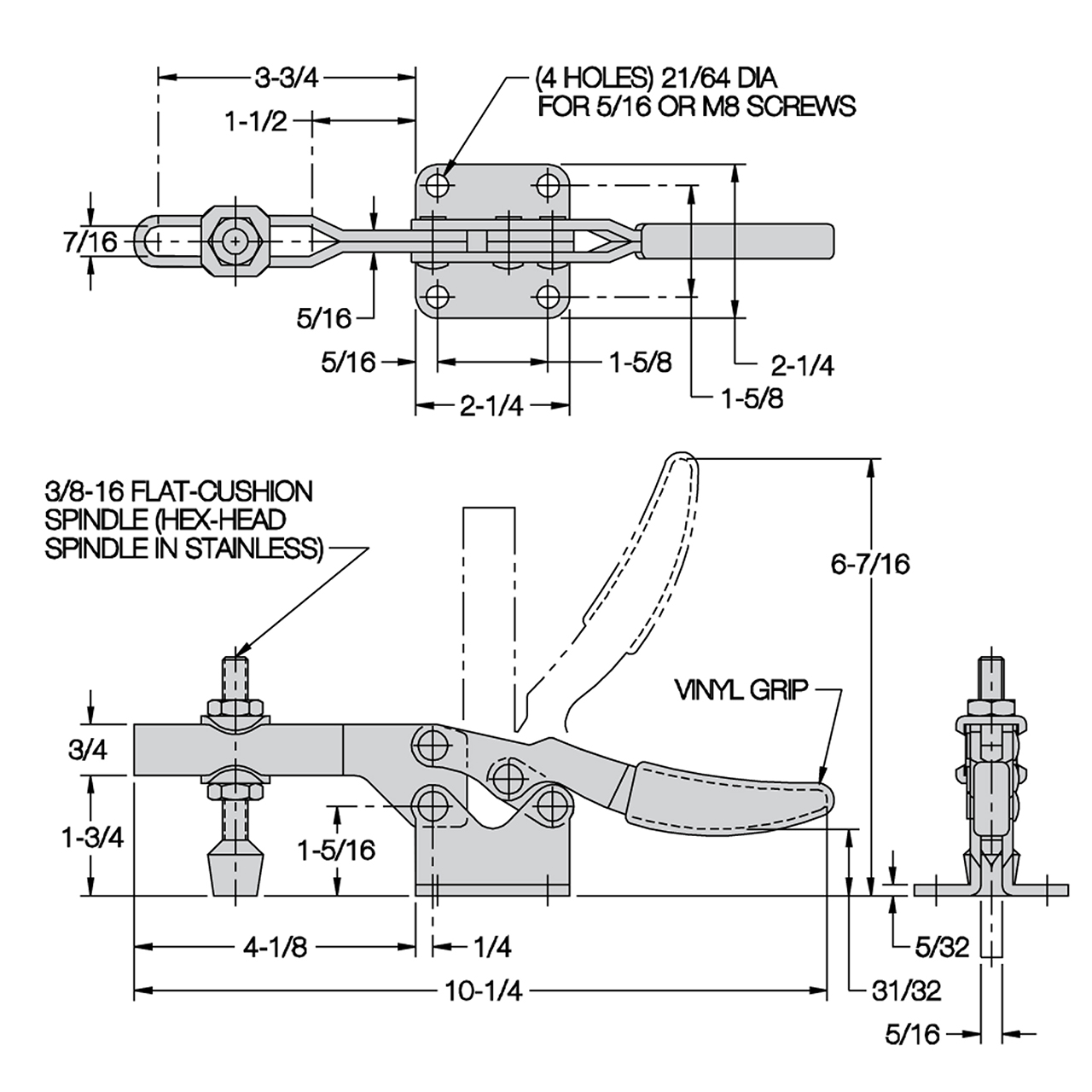

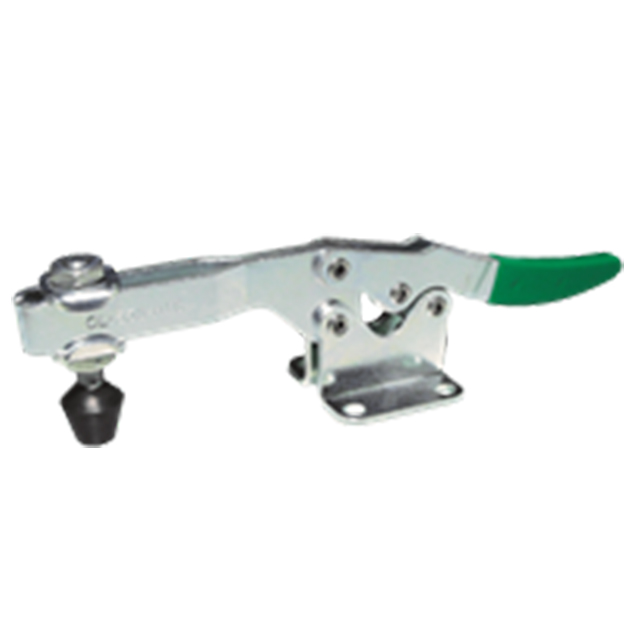

Heavy-duty horizontal-handle clamp. Arm opens 90ยฐ while handle moves 55ยฐ. Open arm provides adjustable spindle location. 750 lbs holding capacity.

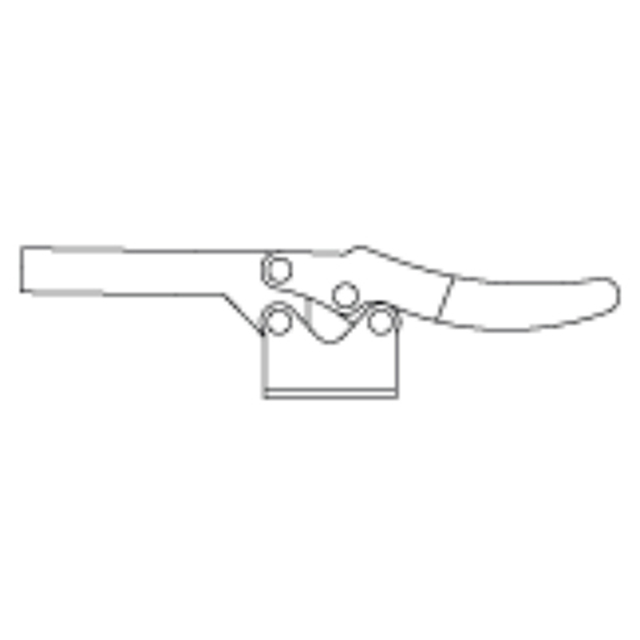

Clamped Position
Open Position
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1008, 1010, and/or 1018 Steel | Yes | Zinc plated clear chromate | Yes | Yes |
| Rivets | 400-Series Stainless | Yes | Yes | Yes | Yes |
| Handle | Vinyl | Yes | Yes | Yes | Yes |
| Description | Holding Capacity (lbs) | Shipping Weight (lbs) |
| Open Arm, Straight Base | 750 lbs. | 1.5 lbs. |
