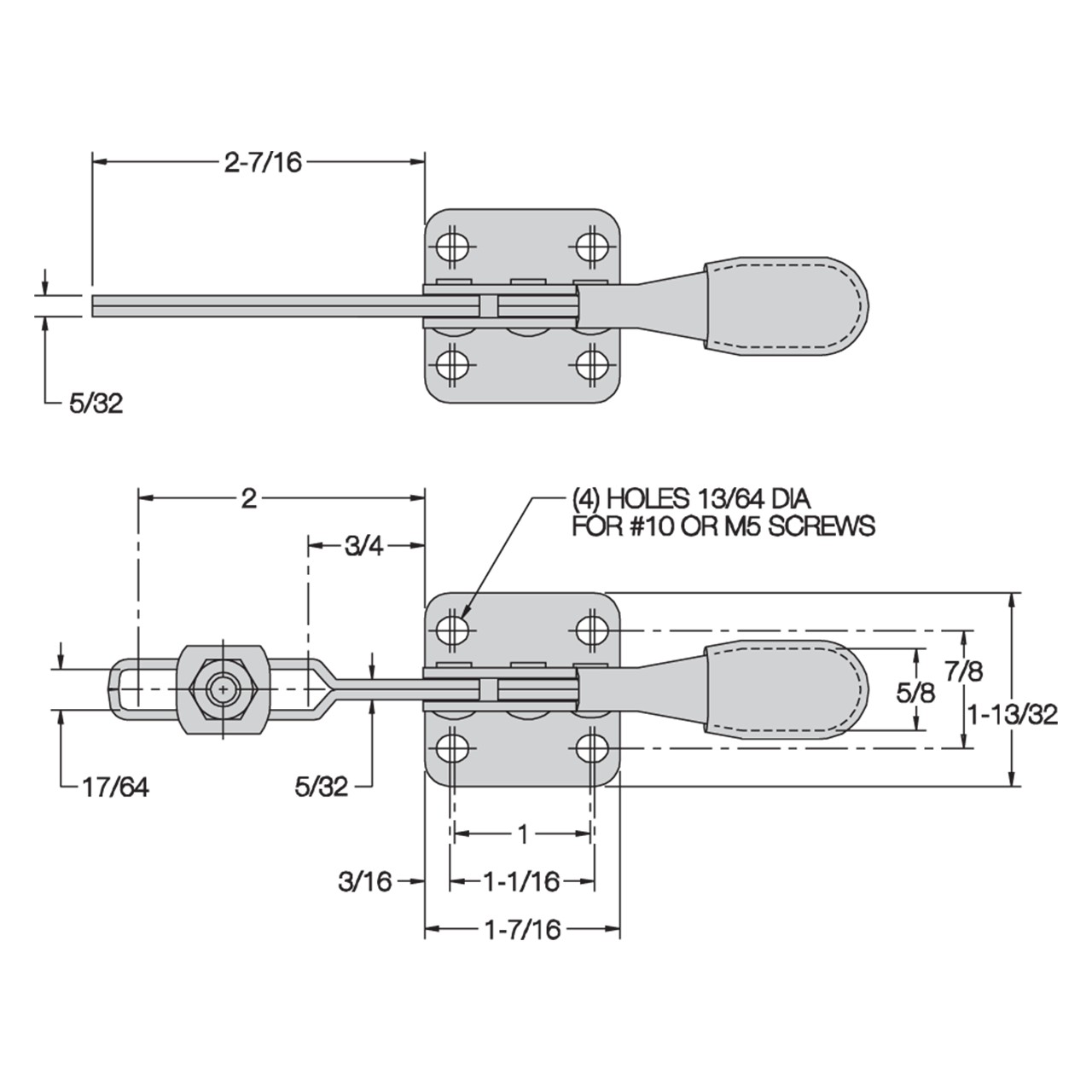

Open Arm, Flanged Base
Popular medium-duty clamp. Arm opens 90° while handle moves 80°. Choose either an open arm for adjustable spindle location, or a solid arm for fixed spindle location. Choice of flanged base or straight base. 200 lbs. holding capacity.
Clamped Position

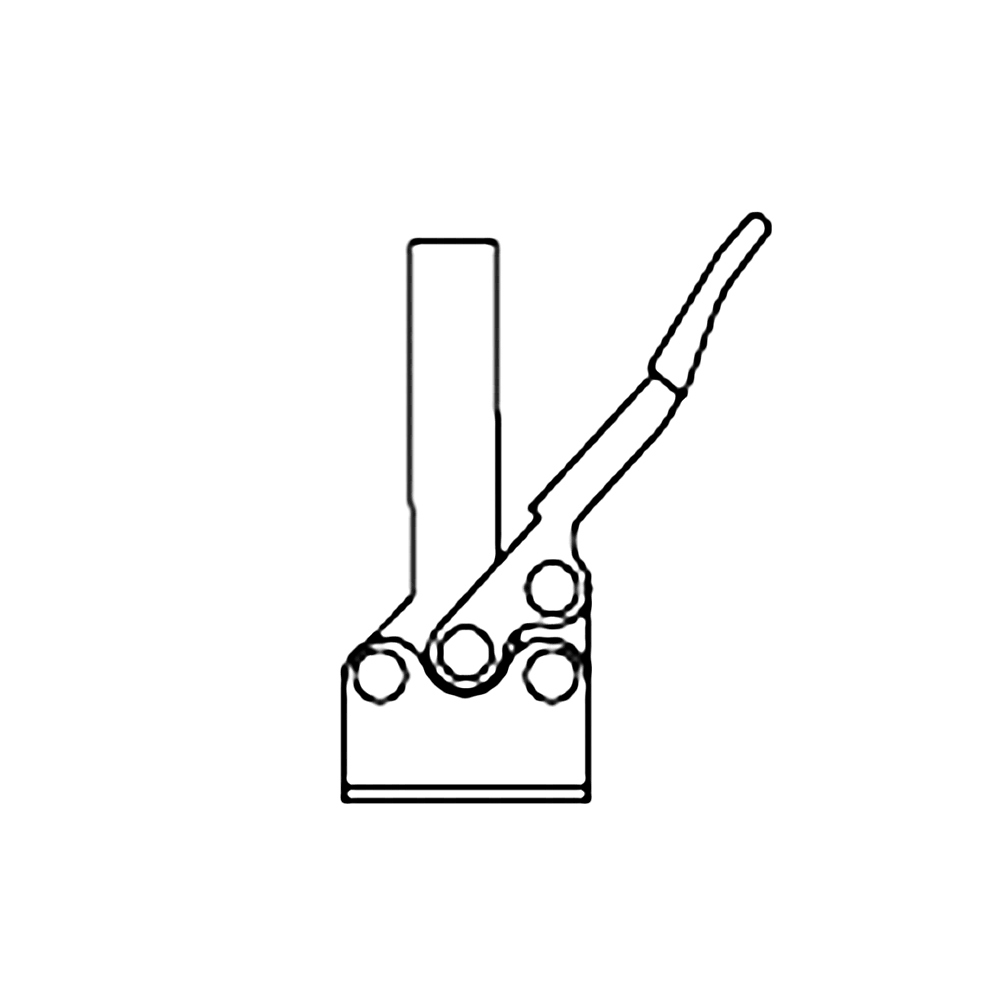

Open Position
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1008, 1010, and/or 1018 Steel | - | Zinc plated clear chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Open Arm, Flanged Base | 200lbs. | 0.3lbs. |
