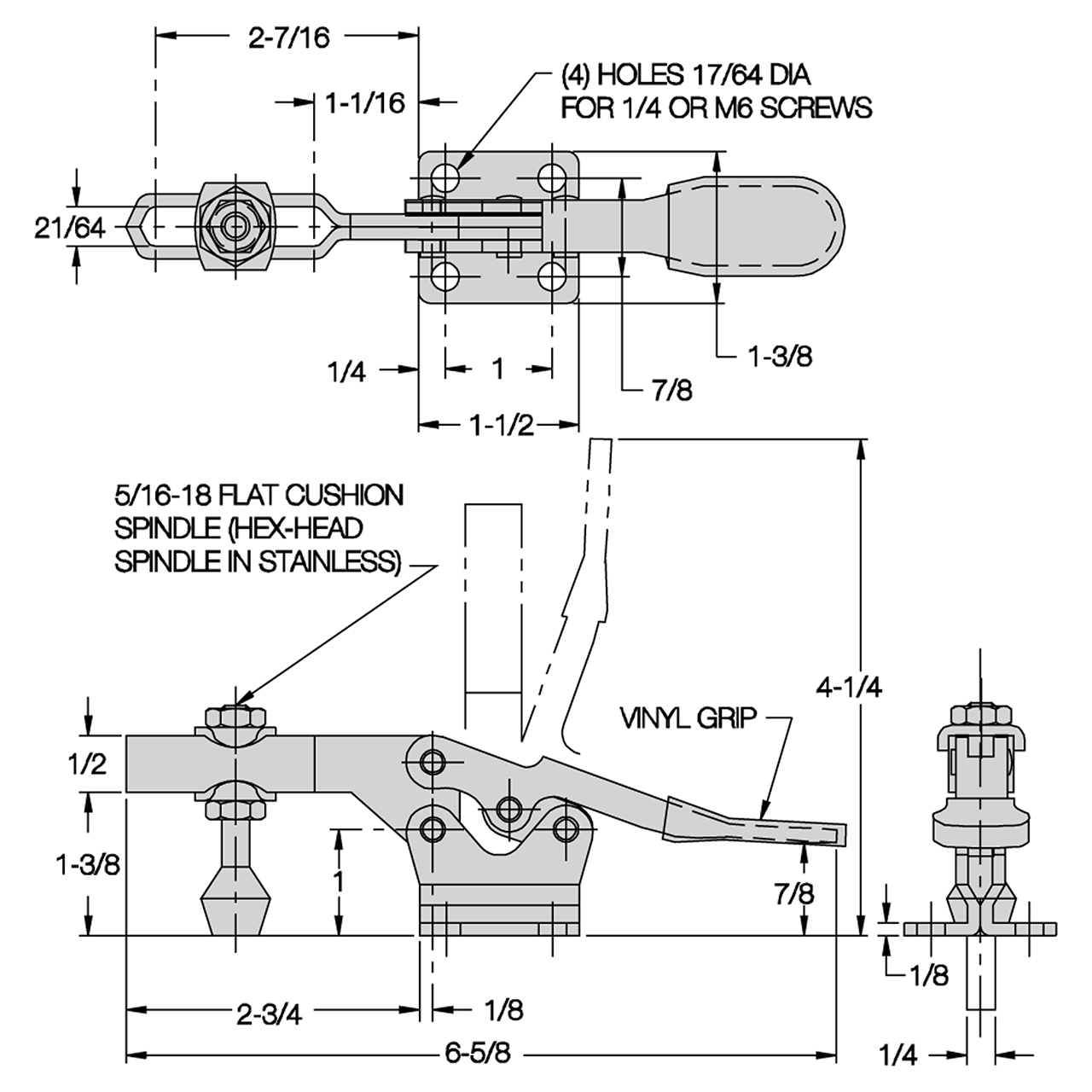

Open Arm, Flanged BaseStrong-yet-compact horizontal-handle clamp. Arm opens 90° while handle moves 65°. Open arm provides adjustable spindle location. Choice of flanged base or straight base.
Clamped Position
Open Position
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1008, 1010, and/or 1018 Steel | - | Zinc plated clear chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Open Arm, Straight Base | 500lbs. | 0.6lbs. |
