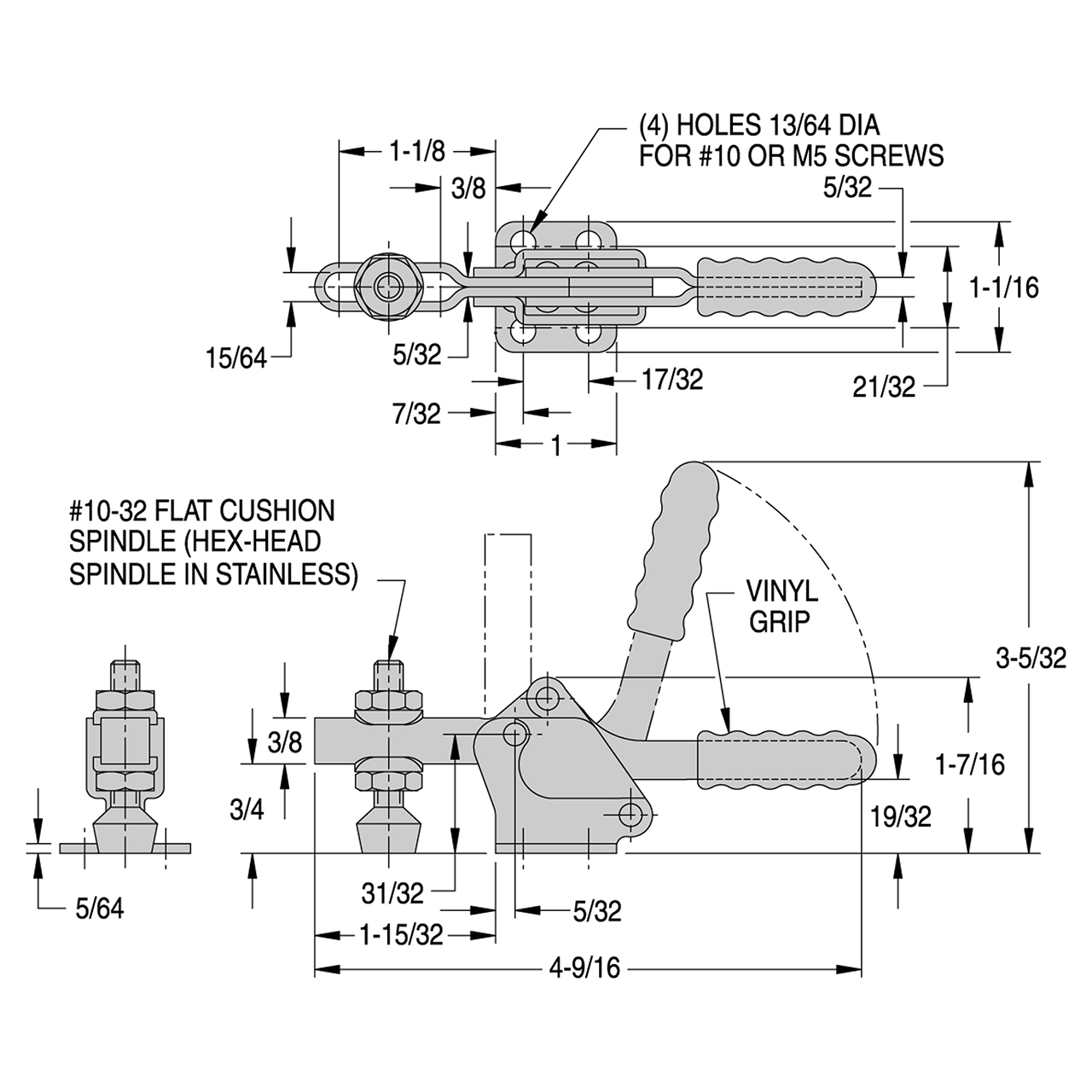

Open Arm, Flanged Base
An extremely powerful clamp for its small size. Arm opens 90° while handle moves 75°. Open arm provides adjustable spindle location. 150 lbs. holding capacity.

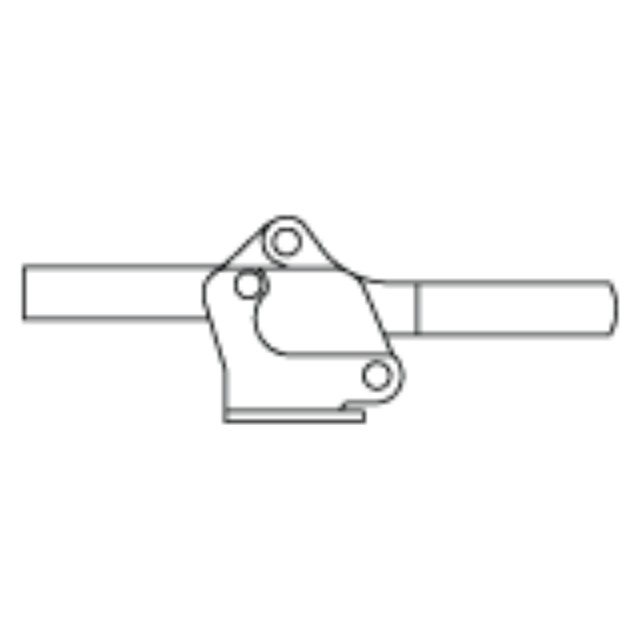

Clamped Position
Open Position
| STEEL | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1008, 1010, and/or 1018 Steel | - | Zinc plated clear chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Open Arm, Flanged Base | 150lbs. | 0.2lbs. |
