Carr Lane CL-110-ALH-S | Adjustable Locking Hub

Adjustable Locking Hubs – Stainless Steel, Mounting Flange & Round End

Inline Version for 220 Degree Adjustment Adjustable Locking Hubs are rotary bearings that provide positive locking at any 10 Degree increment. Once locked, the hub becomes an absolutely rigid joint, able to withstand considerable torque. The stainless steel type shown here, with one mounting flange and one round end, can resist 80 ft-lbs of torque, with a 5:1 safety factor. Applications include adjustable fixtures, rotating fixtures, welding fixtures, trunnion mounting, adjustable handles, foldable handles, adjustable part trays, adjustable shelves, adjustable racks, adjustable and/or fold-away work surfaces, positive positioning of lighting or nozzles, and collapsible structures. Patent numbers 5,586,363 and 5,689,999. Other patents pending. Made in USA.

Inline Version

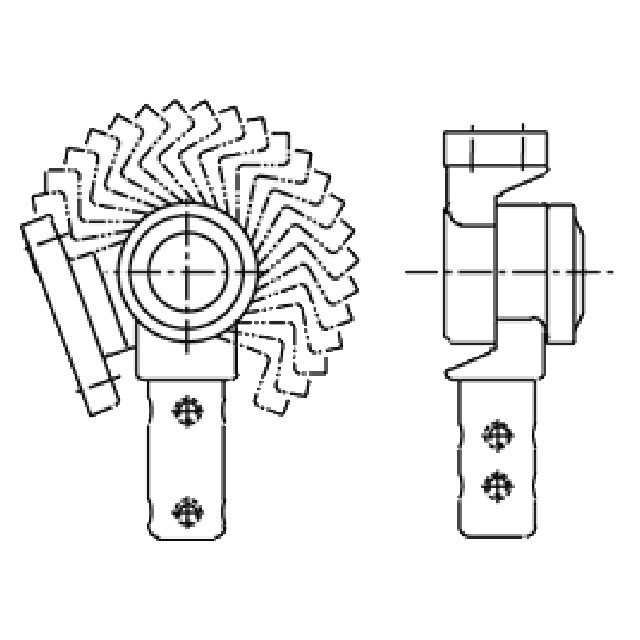

The inline version shown here has hub extensions that line up in the same plane. Total range of movement is 220 Degree (not full rotation).

Mounting

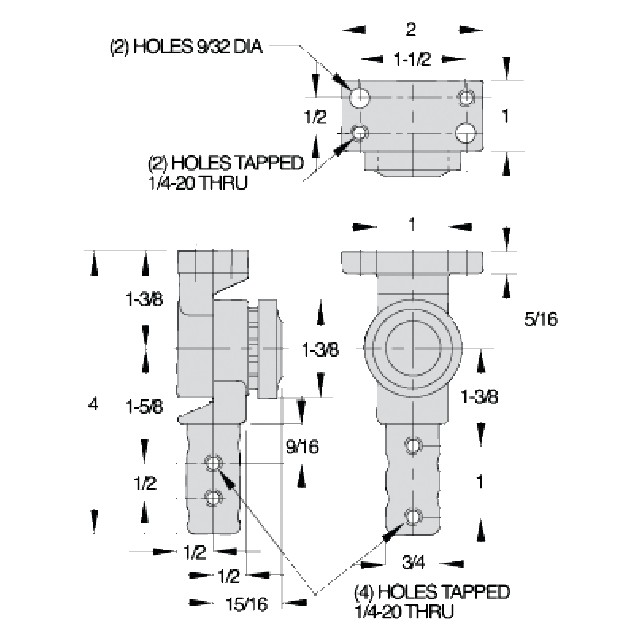

The version shown here has one mounting flange and one round end. The flange provides two options for mounting: 1) two 1/4-20 tapped holes allow fastening an object to the mounting flange; 2) two 9/32"-dia clearance holes for 1/4" or M6 screws allow fastening the mounting flange to a surface. The round end fits 3/4" ID pipe or tubing

Safety Precautions

Avoid any possible pinch points, especially with heavy loads. Do not release the hub unless adequate support for the load is in place. Do not let loads swing freely. When using offset hubs that can rotate 360 Degree, always ensure that loads are balanced in the rotational axis.

Material

Parts Specification
