Carr Lane CL-100-LPA-S | 360 lbs. Holding Capacity Adjustable U Bolt with Safety Lock

CL-100-LPA Series with Safety Lock-360lbs.

CL-100-LPA

Safety-lock version of the CL-100-PA toggle clamp. The integral safety lock automatically engages when the clamp is closed, then remains locked until manually disengaged by pressing the lever before opening. This prevents the clamp from being accidentally opened by bumping the handle.

Miniature latch clamp with high holding capacity and a threaded U bolt for adjustability. Large, comfortable handle grip. 1-3/16" drawing movement. Threaded U bolt allows a 25/64" adjustment range. Supplied with matching latch plate. 360 lbs. holding capacity.

Clamping Action

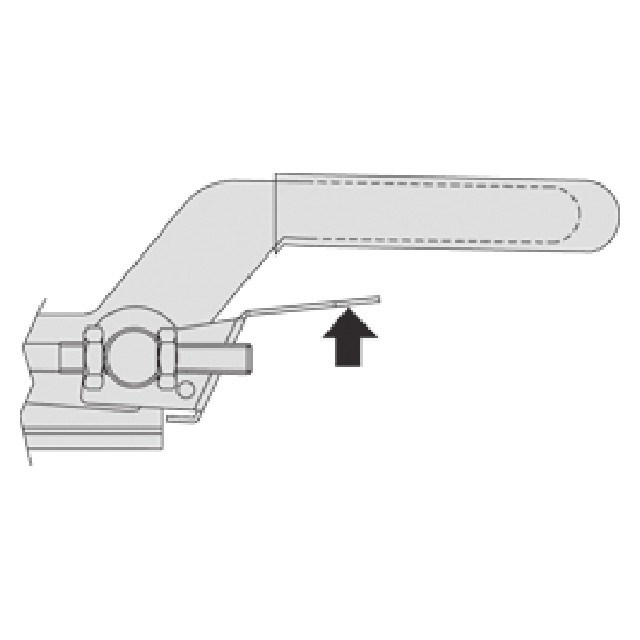

Press Lever to Unlock

Design Considerations

To achieve full holding capacity, U-bolt-type latch clamps must be used together with the furnished latch plate, or with a suitable custom latch plate of equal width and centerline height.

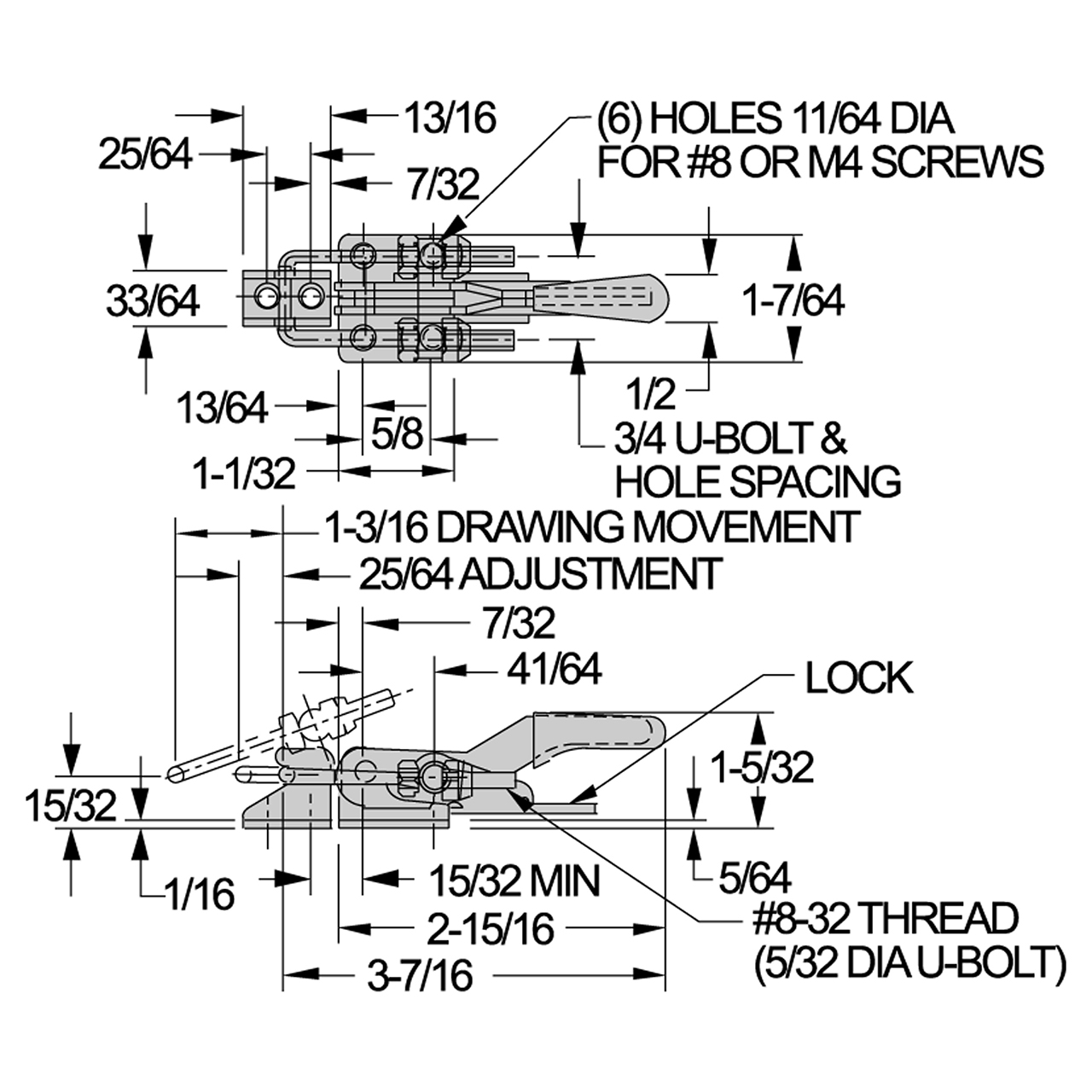

Material

Parts Specification
