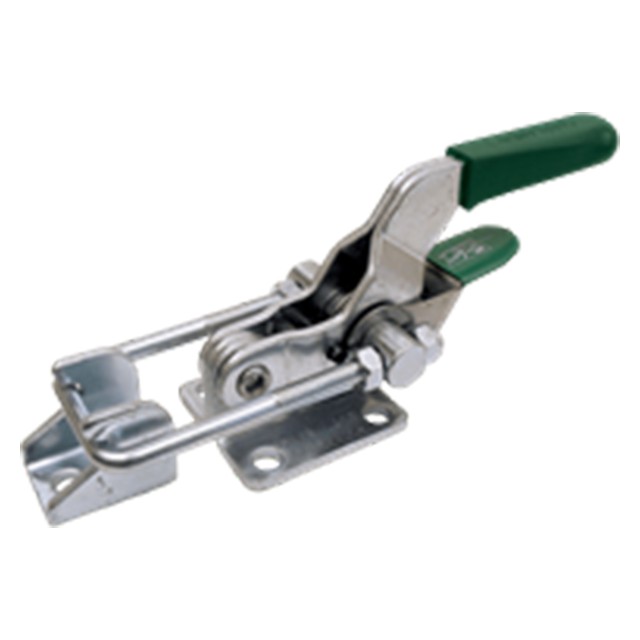

Carr Lane CL-300-LPA | 2000 lbs. Holding Capacity Adjustable U Bolt

Series with Safety Lock

Safety-lock version of the CL-300-PA toggle clamp. The integral safety lock automatically engages when the clamp is closed, then remains locked until manually disengaged by pressing the lever before opening. This prevents the clamp from being accidentally opened by bumping the handle.

Versatile latch clamp with a threaded U bolt for adjustability. Large, comfortable handle grip. 2-1/2" drawing movement. Threaded U bolt allows a 15/16" adjustment range. Supplied with matching latch plate. 2000 lbs. holding capacity.

Clamping Action

Press Lever to Unlock

Design Considerations

To achieve full holding capacity, U-bolt-type latch clamps must be used together with the furnished latch plate, or with a suitable custom latch plate of equal width and centerline height.

Material

Parts Specification
