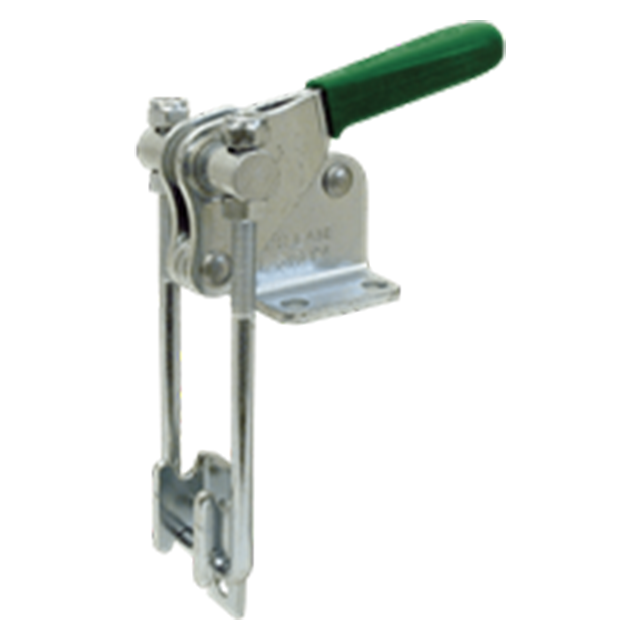

Versatile latch clamp with a threaded U bolt for adjustability. Pulling direction is perpendicular to the base. Large, comfortable handle grip. 2-1/2" drawing movement. Threaded U bolt allows a 1-1/8" adjustment range. Supplied with matching latch plate. 2000 lbs. holding capacity.
To achieve full holding capacity, U-bolt-type latch clamps must be used together with the furnished latch plate, or with a suitable custom latch plate of equal width and centerline height.
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1008, 1010, and/or 1018 Steel | - | Zinc plated clear chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) | Replacement U Bolt | Replacement Latch Plate |
| Flanged Base | 2000lbs. | 1.4lbs. | CL-310-PA-UBOLT | CL-310-PA-L |
