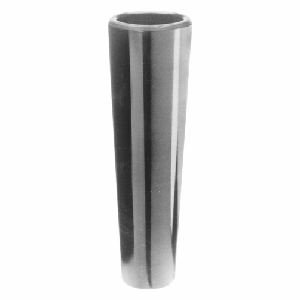

Carr Lane CL-20-PH-PACKOF2 | 1-1/8" Diameter Tapered Handle – Counterbored Through Hole (Phenolic)

$6.44
Brand:
Carr Lane
Diameter (Inch):
1-1/8"
Diameter (Decimal Inch):
1.1300"
Diameter (mm):
28.58mm
SKU:
50035572
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
Carr Lane CL-20-PH-PACKOF2 | 1-1/8" Diameter Tapered Handle – Counterbored Through Hole (Phenolic)

Product Information

Heavy-duty design that makes an excellent grasp handle or machine shift lever. The version shown here is made of solid phenolic plastic, with a counterbored through-hole. This type can be used as a rotating handle by installing with a Shoulder Screw. Choice of three handle sizes. Made in USA.

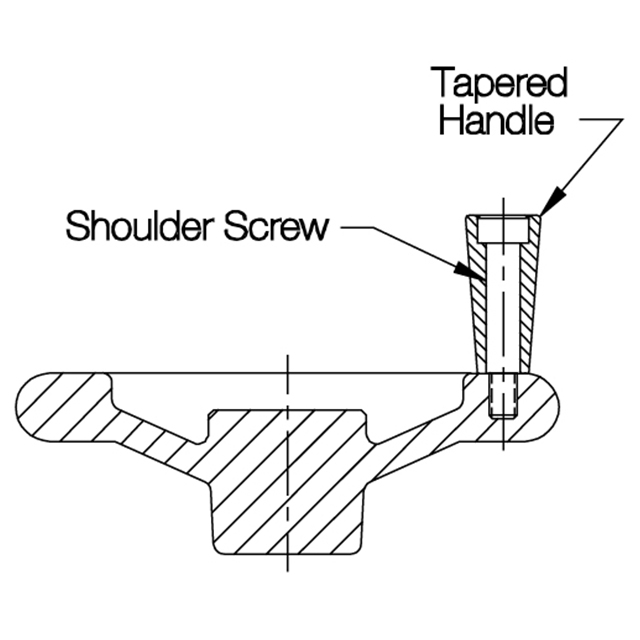

Application Information

Available Sizes

3/8 Dia 3/8 Dia 1/4 Dia

Material

MATERIALHEAT TREATFINISHDFARSRoHS
Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300 Degree, resistant to oils and most common chemicals)-Molded-in Brass Insert✔✔

Parts Specification

Part NumberA DIABC DIAD DIA NOMINALD DIA ACTUALE
CL-20-PH-PACKOF21-1/83-11/163/43/8.380 / .3852-5/8

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Carr Lane
Diameter (Inch):
1-1/8"
Diameter (Decimal Inch):
1.1300"
Diameter (mm):
28.58mm
