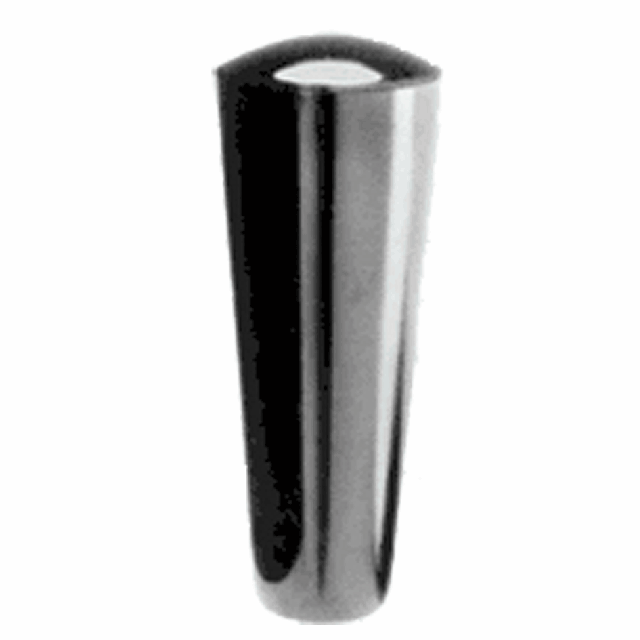

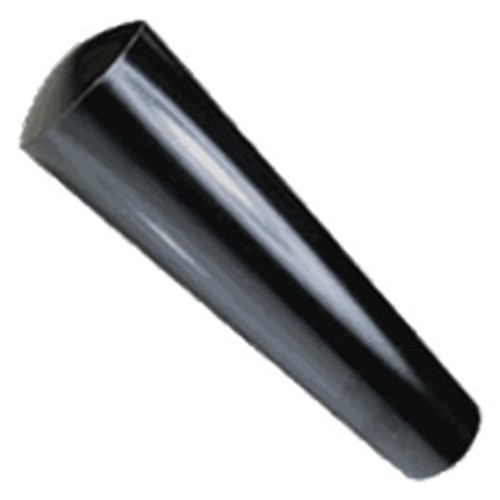

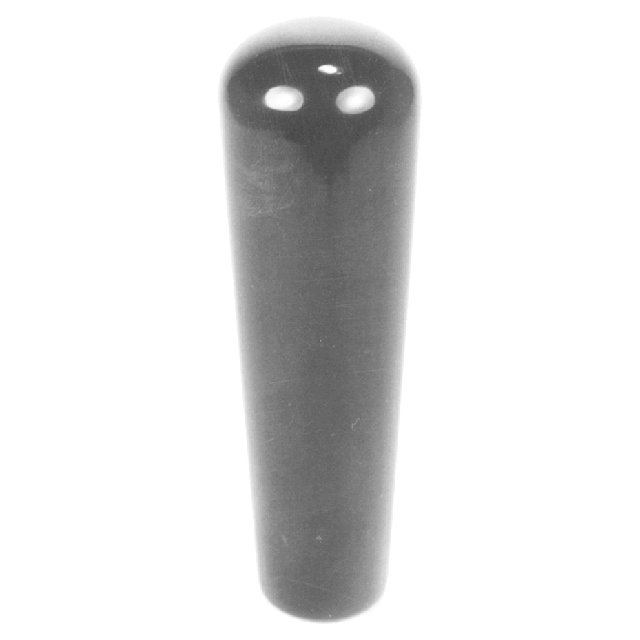

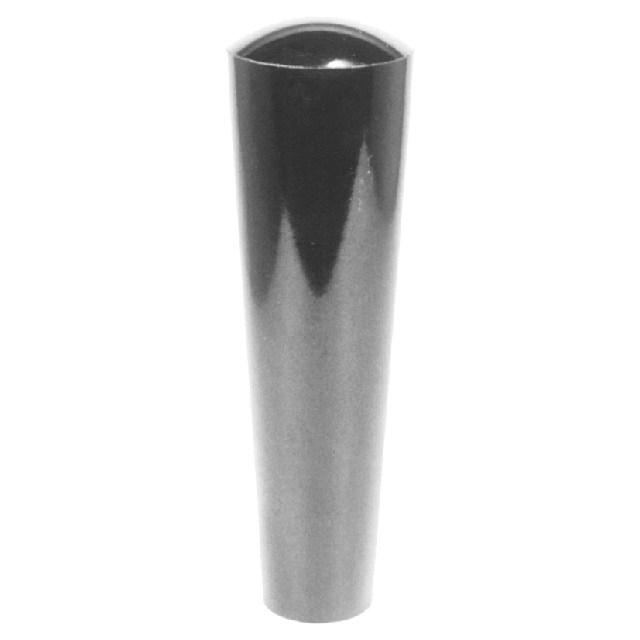

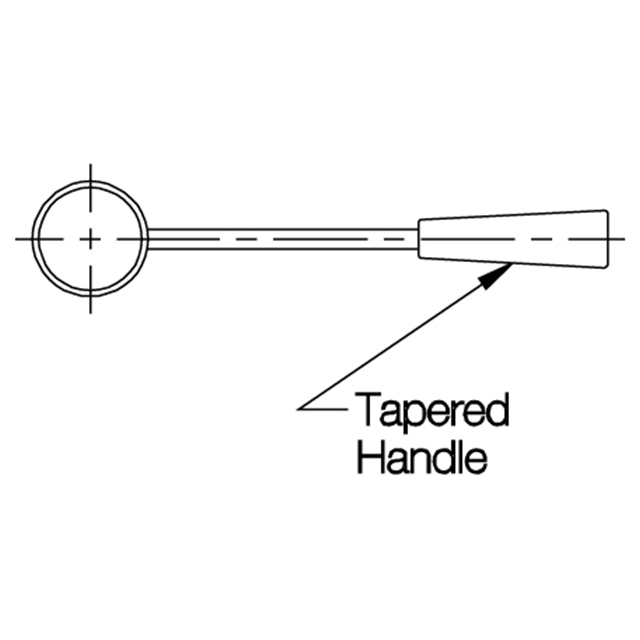

Heavy-duty design that makes an excellent grasp handle or machine shift lever. Choice of three handle sizes, available with tapped-hole sizes from 1/4-20 to 1/2-13 (M6 to M10 in metric). Molded-in brass insert provides superior thread strength. Non-standard thread sizes or molded-in studs are available in quantities of 500 and above. Made in USA.
1/2-13M10 3/8-16M8 1/4-205/16-183/8-16M6M8
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300 Degree, resistant to oils and most common chemicals) | - | Molded-in Brass Insert | ✔ | ✔ |

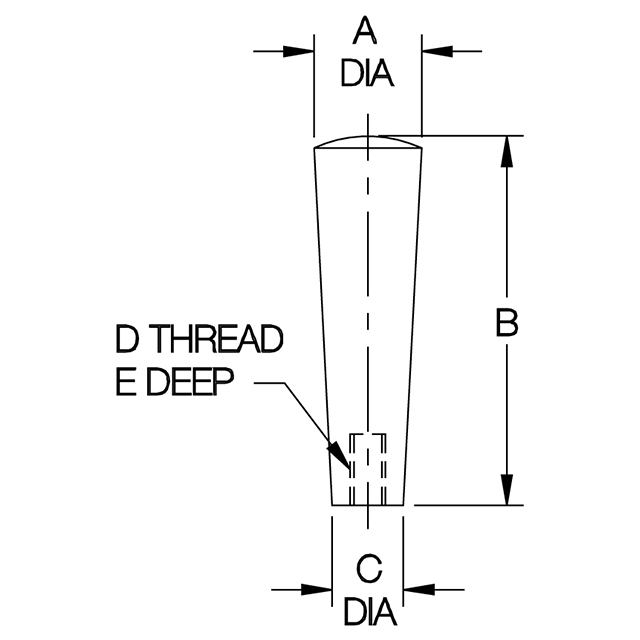

| Part Number | A DIA | B | C DIA | D THREAD | E |
| CL-15-PH-PACKOF2 | 1 | 2-5/8 | 5/8 | 5/16-18 | 7/16 |
