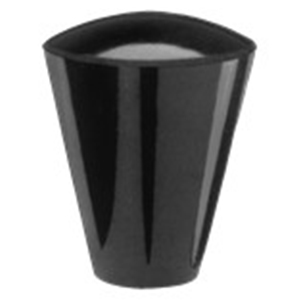

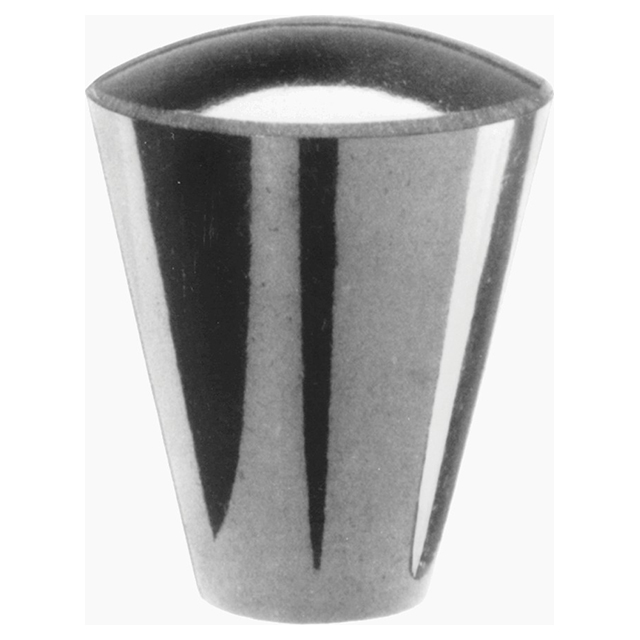

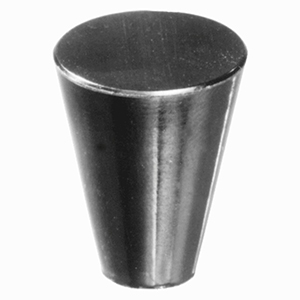

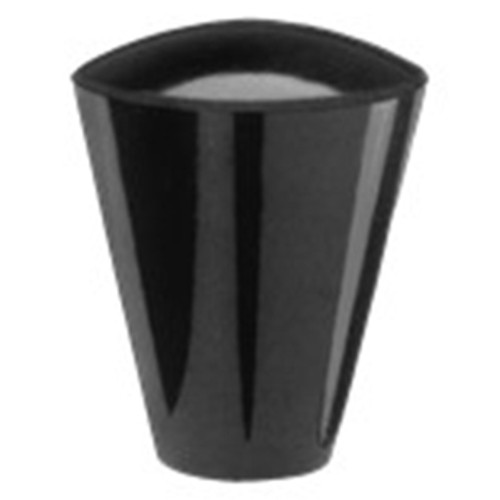

Heavy-duty design that makes an excellent small handle or pull knob. Choice of two knob sizes, available with tapped-hole sizes from #10-32 to 5/16-18 (M5 to M8 in metric). Molded-in brass insert provides superior thread strength. Non-standard thread sizes or molded-in studs are available in quantities of 500 and above. Made in USA.
#10-32M5 1/4-205/16-18M6M8
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300 Degree, resistant to oils and most common chemicals) | - | Molded-in Brass Insert | ✔ | ✔ |

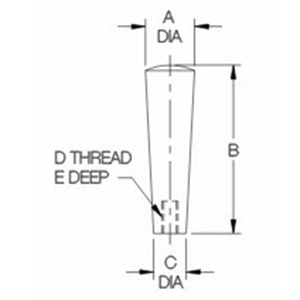

| Part Number | A DIA (mm) | B (mm) | C DIA (mm) | D THREAD | THREAD PITCH (mm) | E (mm) |
| CLM-08-PH-PACKOF2 | 25.5 | 32 | 12.5 | M8 | M8 | 10 |
