Carr Lane CL-8-RGFN | #10-32 Thread x 1/2" Diameter Round Gripper

$5.01
Brand:
Carr Lane
Thread Size:
#10-32
Diameter (Inch):
1/2"
Diameter (Decimal Inch):
0.5000"
Diameter (mm):
12.70mm
SKU:
50018256
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
Carr Lane CL-8-RGFN | #10-32 Thread x 1/2" Diameter Round Gripper

Product Information

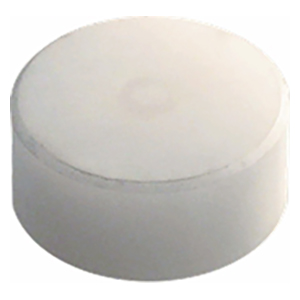

Flat Round Grippers are hard, replaceable inserts used to provide additional wear resistance when installed in a fixture. The Delrin grippers shown here avoid marring finished workpieces. Available in diameters from 3/8 to 1" (10 to 25mm in metric). Made in USA.

Installation

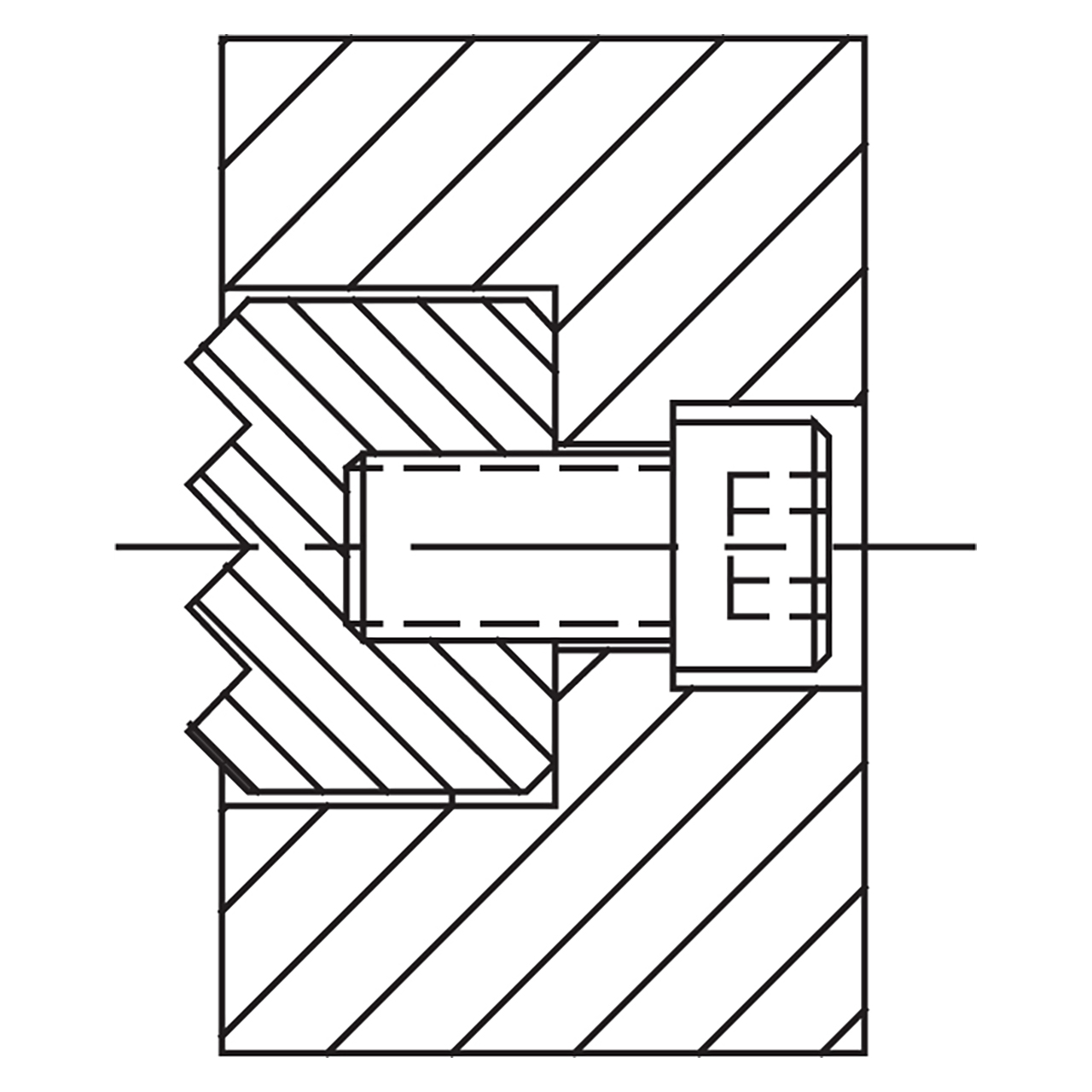

These tapped Round Grippers can be fastened from behind with a socket-head cap screw. Grippers can be recess-mounted in a flat-bottom hole, or surface mounted to use as a rest pad. Tapped Round Grippers can also be installed in Gripper Swivel Pads and Gripper Swivel Contact Bolts.

Material

MATERIALHEAT TREATFINISHDFARSRoHS
White Delrin 500--✔✔

Parts Specification

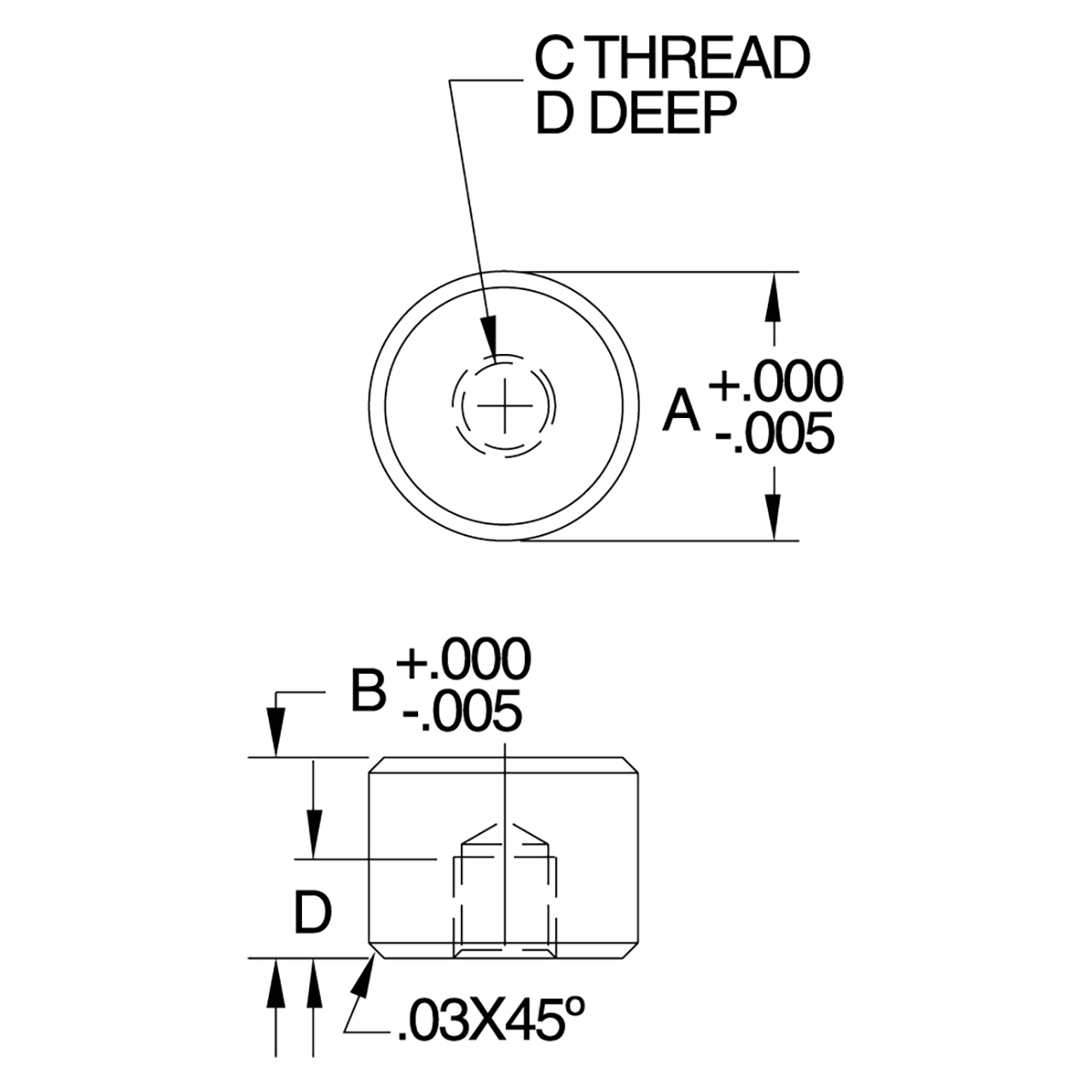

Part NumberA DIABC THREADD
CL-8-RGFN1/23/8#10-323/16
