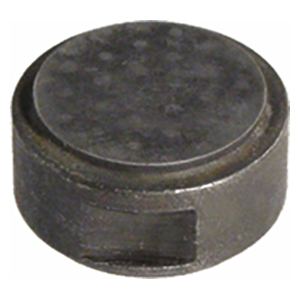

Flat Round Grippers are hard, replaceable inserts used to provide additional wear resistance when installed in a fixture. The carbide-tipped grippers shown here are the most durable. Available in diameters from 3/8 to 1". Made in USA.

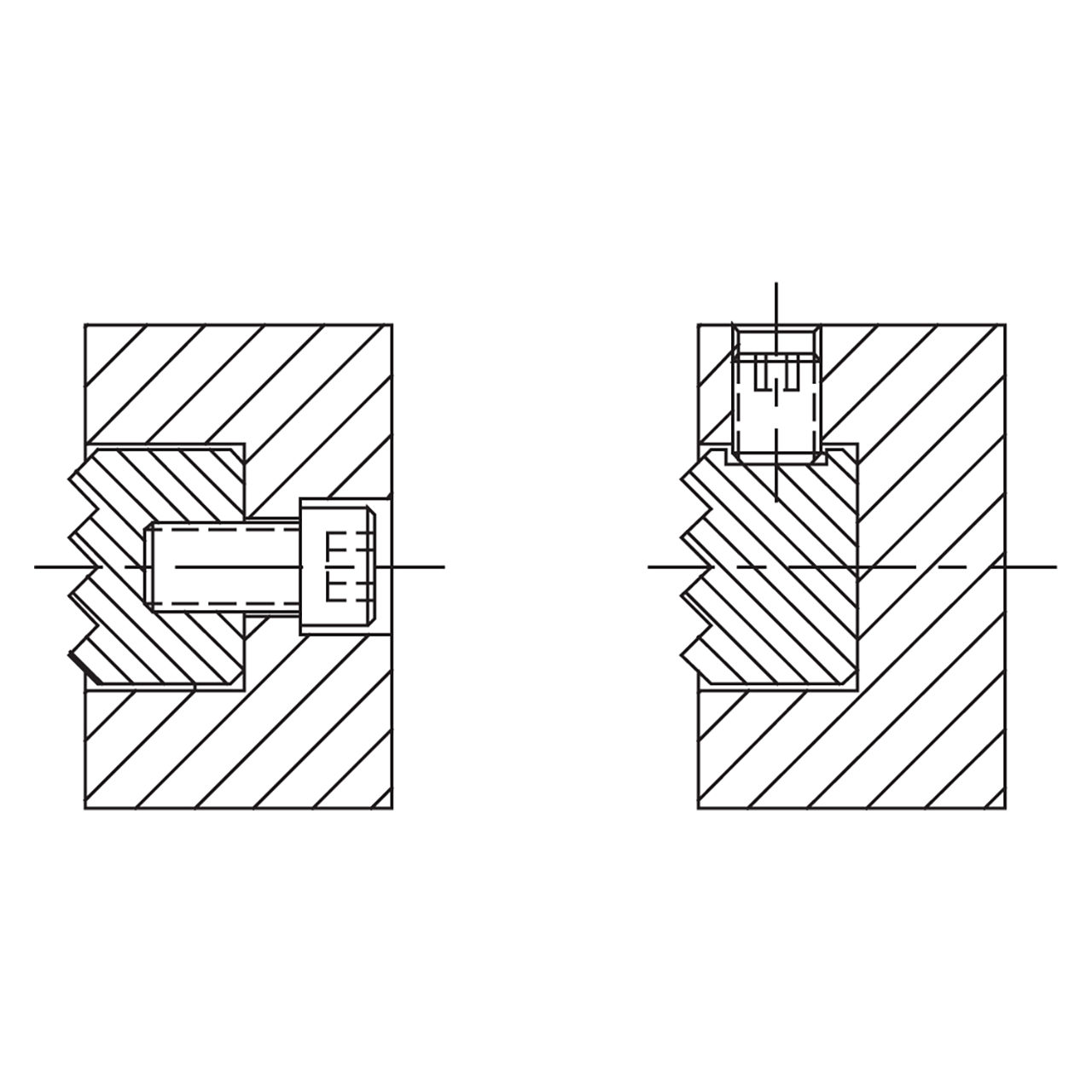

These tapped Round Grippers can be fastened from behind with a socket-head cap screw, or clamped with a setscrew on the O.D. locking flat (hardened steel and Delrin grippers do not have a locking flat). Grippers can be recess-mounted in a flat-bottom hole, or surface mounted to use as a rest pad. Tapped Round Grippers can also be installed in Gripper Swivel Pads and Gripper Swivel Contact Bolts.
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Alloy Steel | Heat Treated, with brazed carbide insert | Black Oxide | ✔ | ✔ |

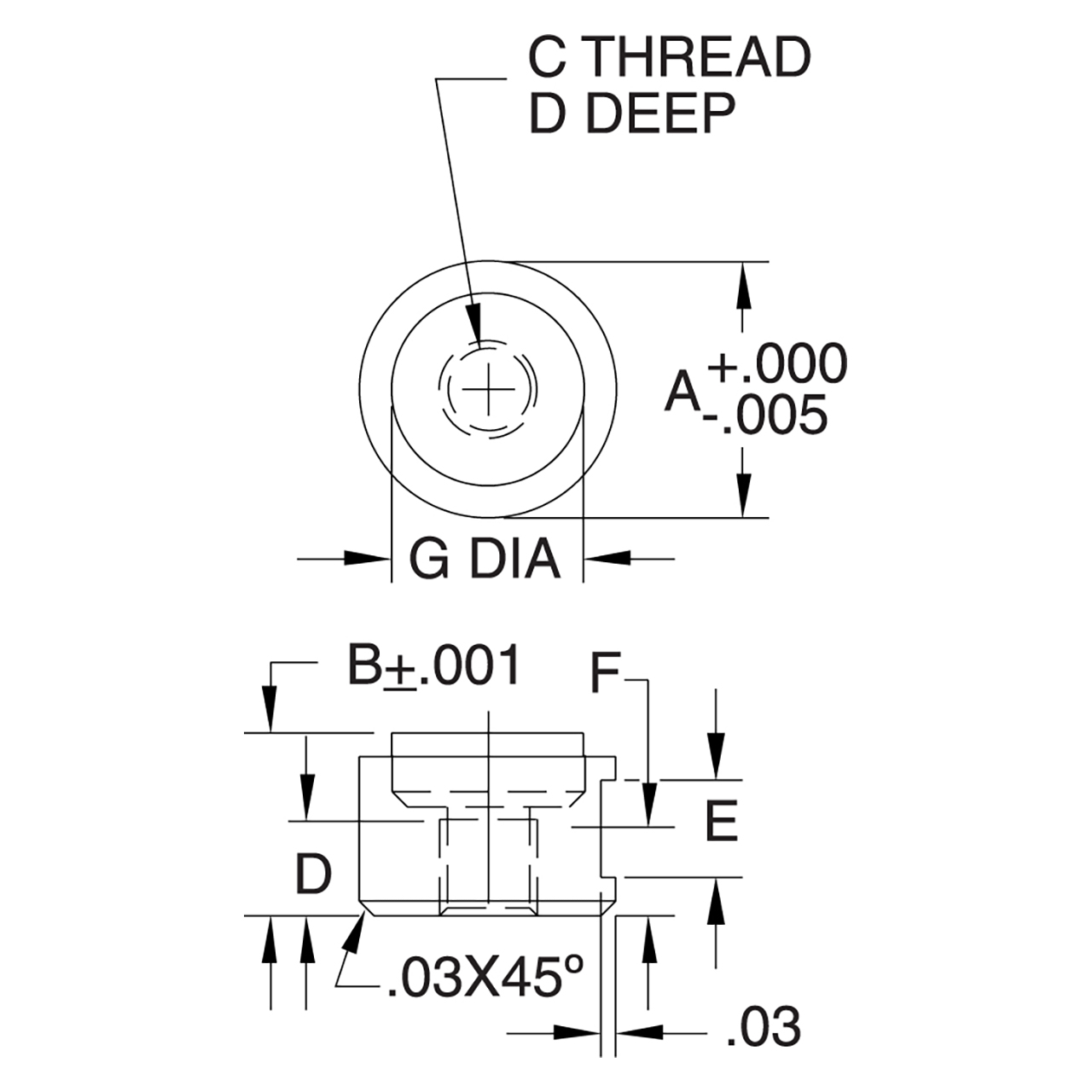

| Part Number | A DIA | B | C THREAD | D | E | F | G DIA |
| CL-8-RGFT | 1/2 | 3/8 | #10-32 | 3/16 | 3/16 | 11/64 | 3/8 |
