Product Information

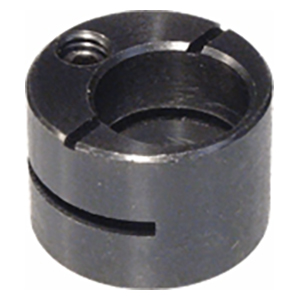

Eccentric Liners can be used with Spring Locating Pins to provide additional adjustment for workpieces with looser tolerances. Use with any of the three types. Available to fit all five sizes of Spring Locating Pins from 1/4" to 5/8" body diameter.

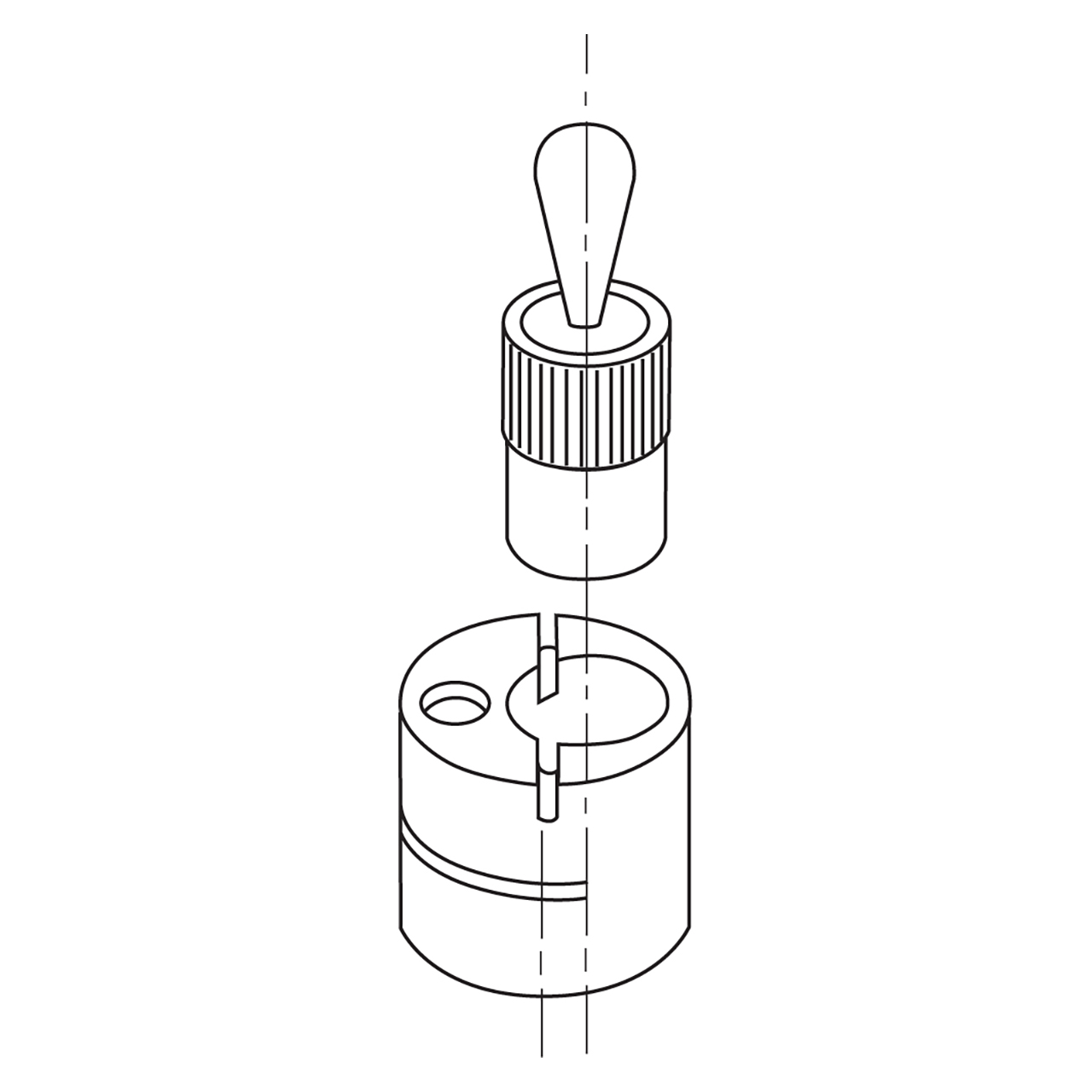

Application Information
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Steel | - | - | ✔ | ✔ |

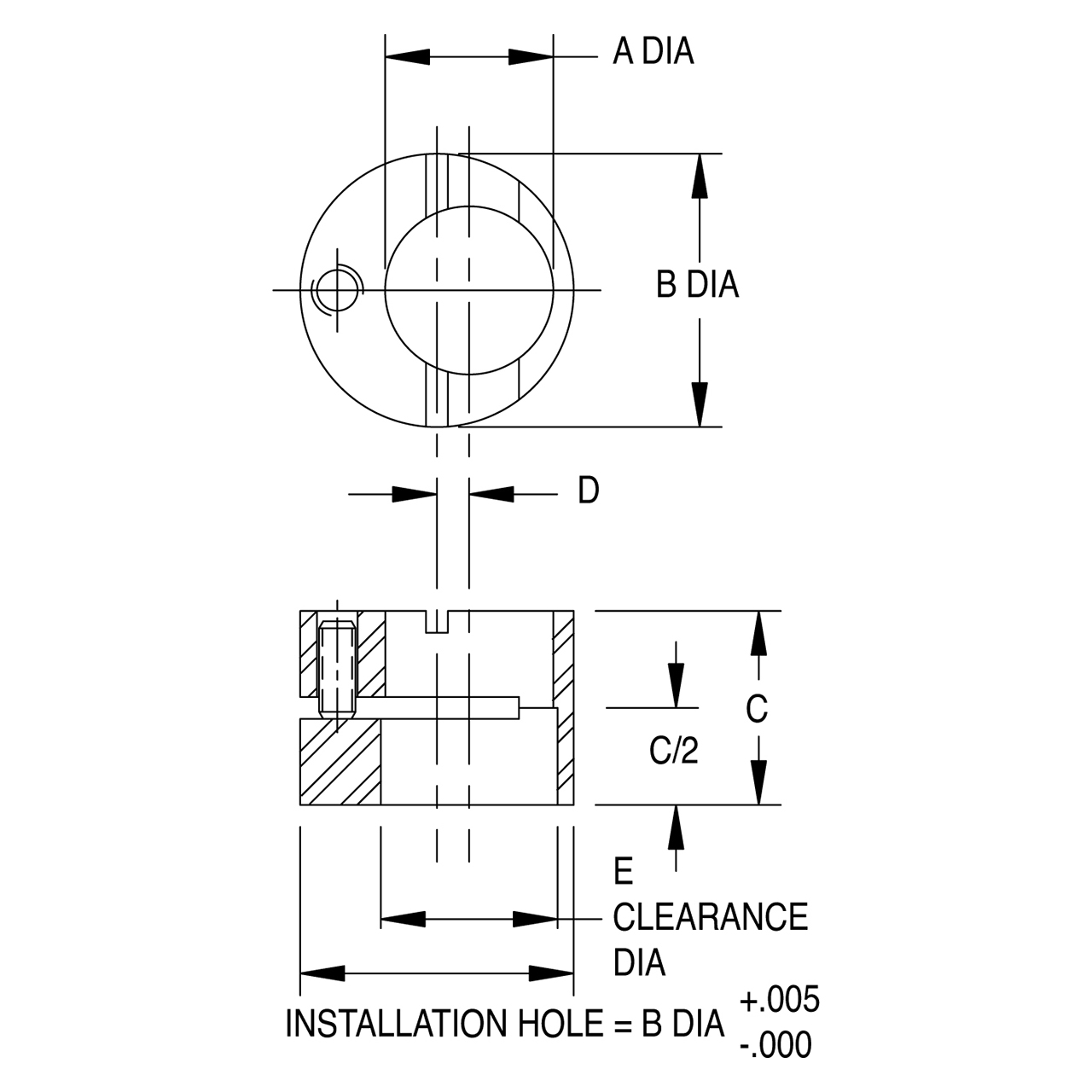

Parts Specification
| Part Number | FITS THESE SPRING LOCATING PINS | A DIA NOMINAL | A DIA ACTUAL | B DIA NOMINAL | B DIA ACTUAL | C | D |
| CL-8-SLPE | CL-8-SLP-x CL-8-SLPS-x CL-8-SLPP-x | 1/2 | .5000 / .5011 | 3/4 | .7500 / .7480 | .547 | .079 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
1/2"
Diameter (Decimal Inch):
0.5000"
Diameter (mm):
12.70mm
