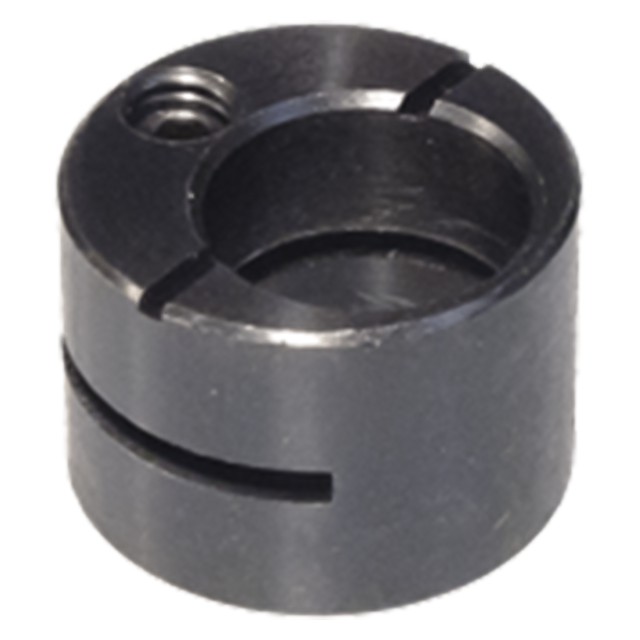

can be used with Spring Locating Pins to provide additional adjustment for workpieces with looser tolerances. Use with any of the three types.
| Material | Heat Treat | Finish | DFARS | RoHS |
| Steel | - | - | Yes | Yes |
| A Diameter Nominal (inch) | A Diameter Actual (inch) | B Diameter Nominal (inch) | B Diameter Actual (inch) | C (inch) | D (inch) |
| 1/4" | 0.2500/0.2507" | 1/2" | 0.5000/0.4983" | 0.390" | 0.079" |
