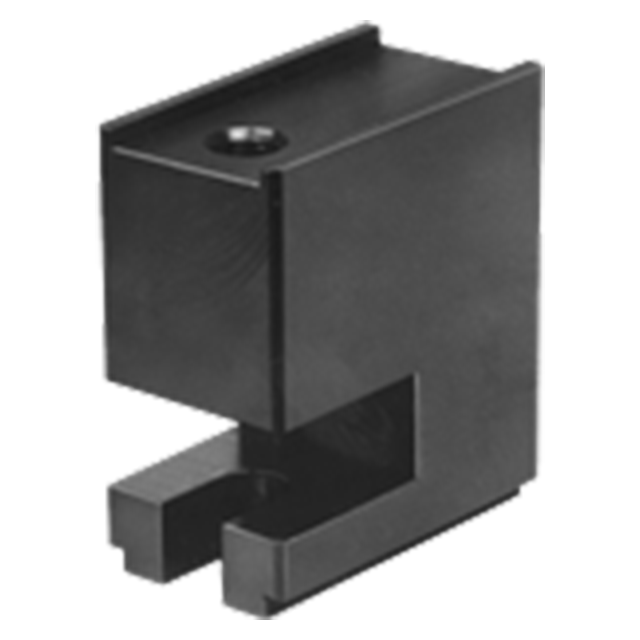

High-Rise-Clamp Riser Blocks
These riser blocks are used to raise up High-Rise Clamps to reach tall workpieces. Modular design allows stacking Narrow Riser Blocks and Spacer Blocks for additional height. Interlocking channels ensure that clamps and risers remain properly aligned when stacked up.
Application Information

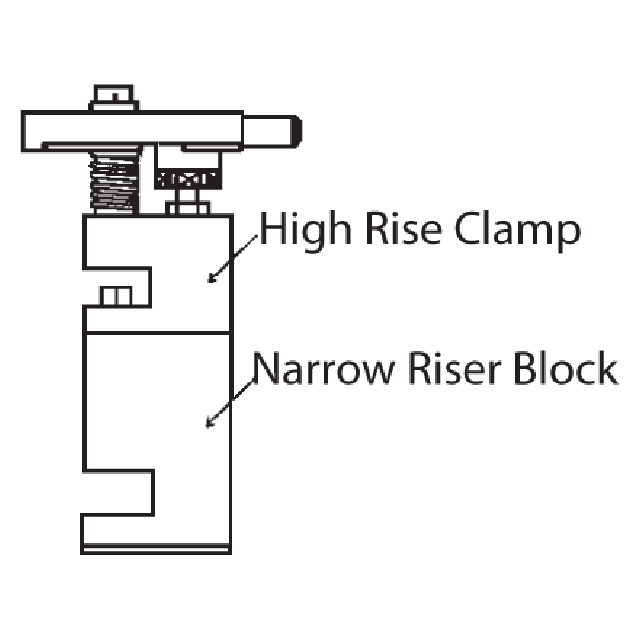

Mounting
Fasten a High-Rise Clamp to the tapped hole on top of the Narrow Riser Block with a Hex-Head Cap Screw. Fasten riser block to the fixture also with a Hex-Head Cap Screw
Material
| Material | Heat Treat | Finish |
| Mild Steel | - | Black Oxide |

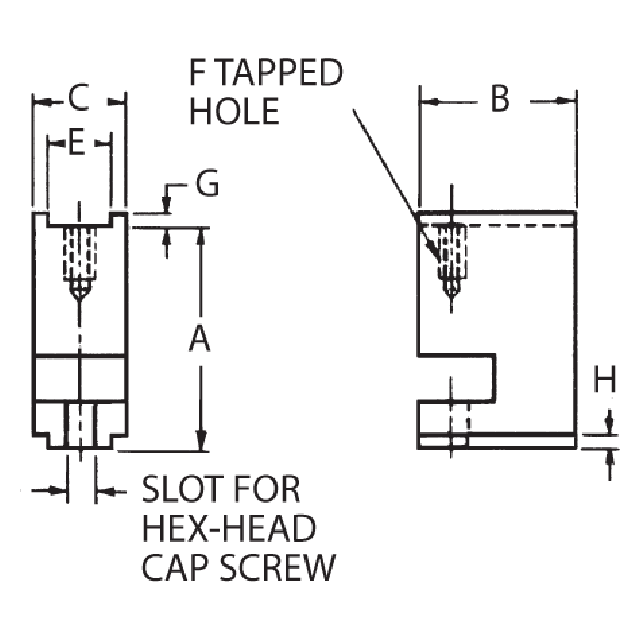

Parts Specification
| Modular System Size | Stud Size | A (Inch) | B (Inch) | C (Inch) | E (Inch) | F Thread | G (Inch) | H (Inch) |
| HEAVY | 5/8-11 | 3" | 3-9/16" | 2" | 1-9/16" | 5/8-11 | 1/8" | 3/16" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
