Horizontal V Blocks
Extremely versatile locator for cylindrical workpieces. Locating surfaces are precision ground and accurately qualified in relation to the mounting holes. Two tapped holes on the end can be used to mount stops or clamps.
Application Information
To locate a workpiece from two different diameters simultaneously, use Height Shims and/or Multipurpose Riser Blocks to raise one V block to the proper level.

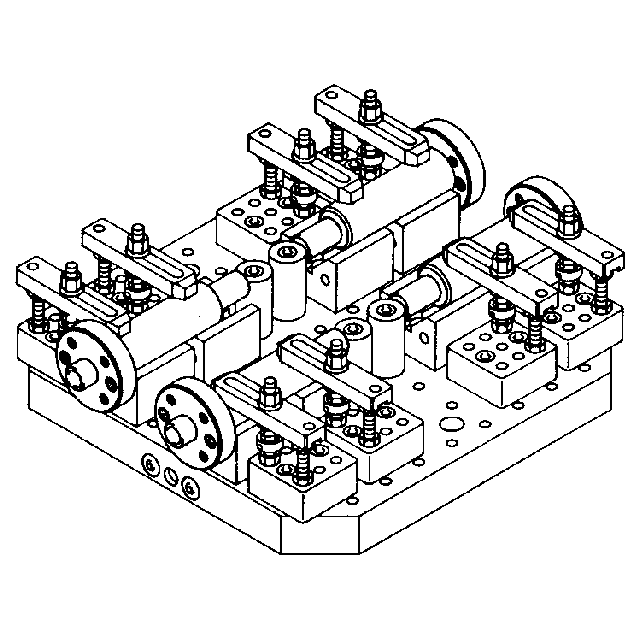

In this example, Support Cylinders are used as end stops for shafts located in Horizontal V Blocks.
Material
| Item | Material | Heat Treat | Finish |
| Body | 1045 Steel | Heat Treated | Black Oxide |
| Bushing | High-Carbon Steel | Heat Treated | - |
Parts Specification
| Size | Workpiece Diameter Range | A | B | D | E | F | G | H | Mounting Screw Size |
| Large V | 9/16 to 4 | 3 | 1.5858 | 5/8-11 | 1-3/8 | 2 | 3-3/8 | 3-3/8 | 5/8-11 |
