Carr Lane CLM-432-PK-PACKOF2 | M6 Thread x 1.00mm Pitch Pull Knob – Flat Top (Phenolic)

$4.74
Brand:
Carr Lane
Thread Size:
M6
Pitch (Inch):
3/64"
Pitch (Decimal Inch):
0.0400"
Pitch (mm):
1.00mm
SKU:
50035905
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
Carr Lane CLM-432-PK-PACKOF2 | M6 Thread x 1.00mm Pitch Pull Knob – Flat Top (Phenolic)

Product Information

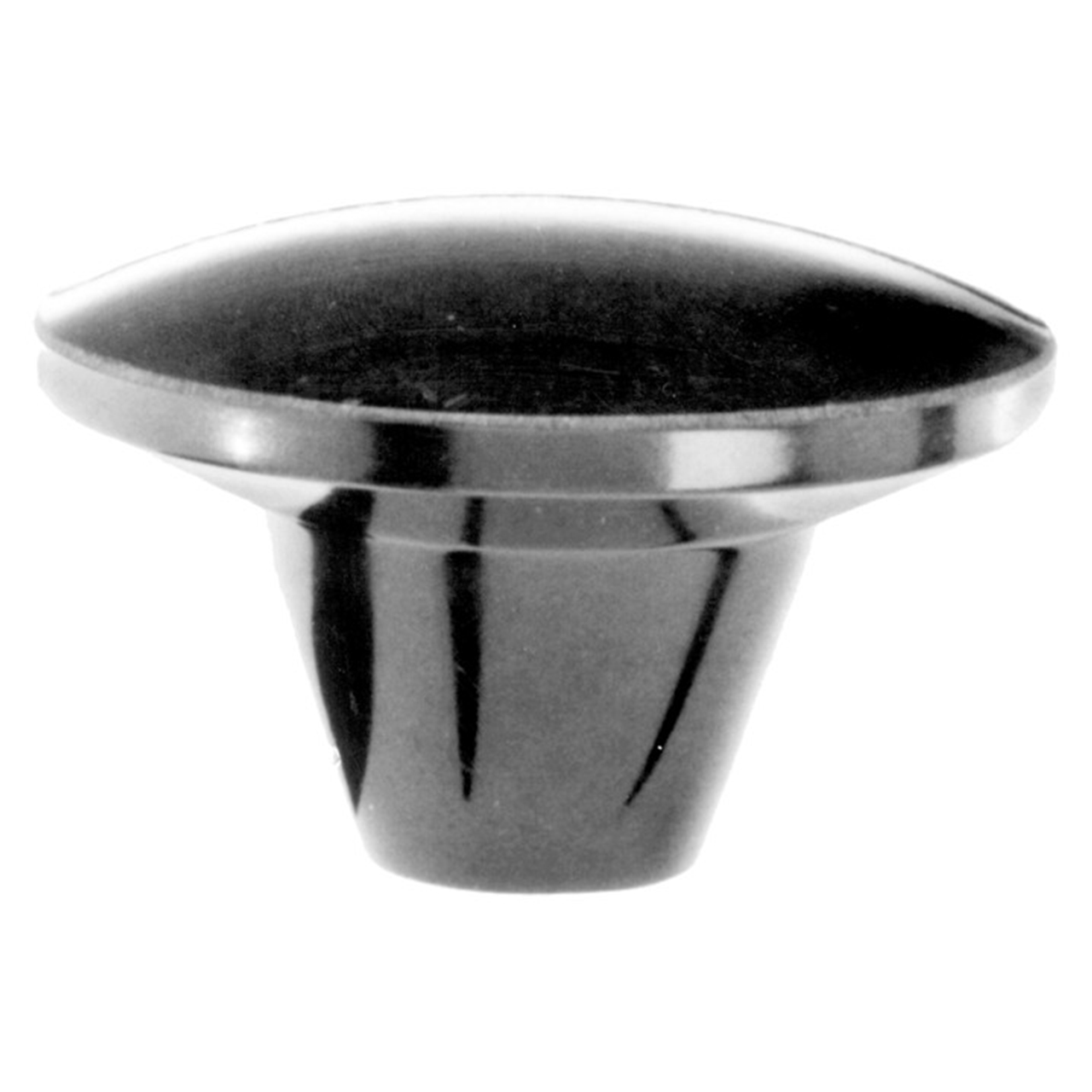

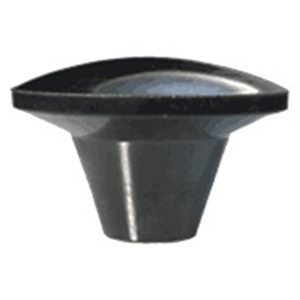

Versatile knobs with an enlarged head for pulling, pushing, or lifting. Choice of two knob sizes, available with tapped-hole sizes from #10-32 to 3/8-16 (M5 to M8 in metric). Molded-in brass insert provides superior thread strength. Non-standard thread sizes or molded-in studs are available in quantities of 500 and above. Made in USA.

Available Sizes

#10-321/4-20M5M6 1/4-205/16-183/8-16M8

Material

MATERIALHEAT TREATFINISHDFARSRoHS
Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300 Degree, resistant to oils and most common chemicals)-Molded-in Brass Insert✔✔

Parts Specification

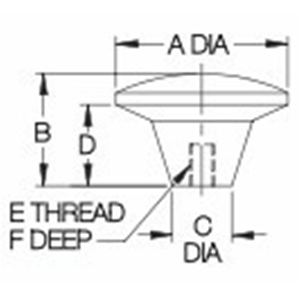

Part NumberA DIA (mm)B (mm)C DIA (mm)D (mm)E THREADTHREAD PITCH (mm)F (mm)
CLM-432-PK-PACKOF235221616M6111
