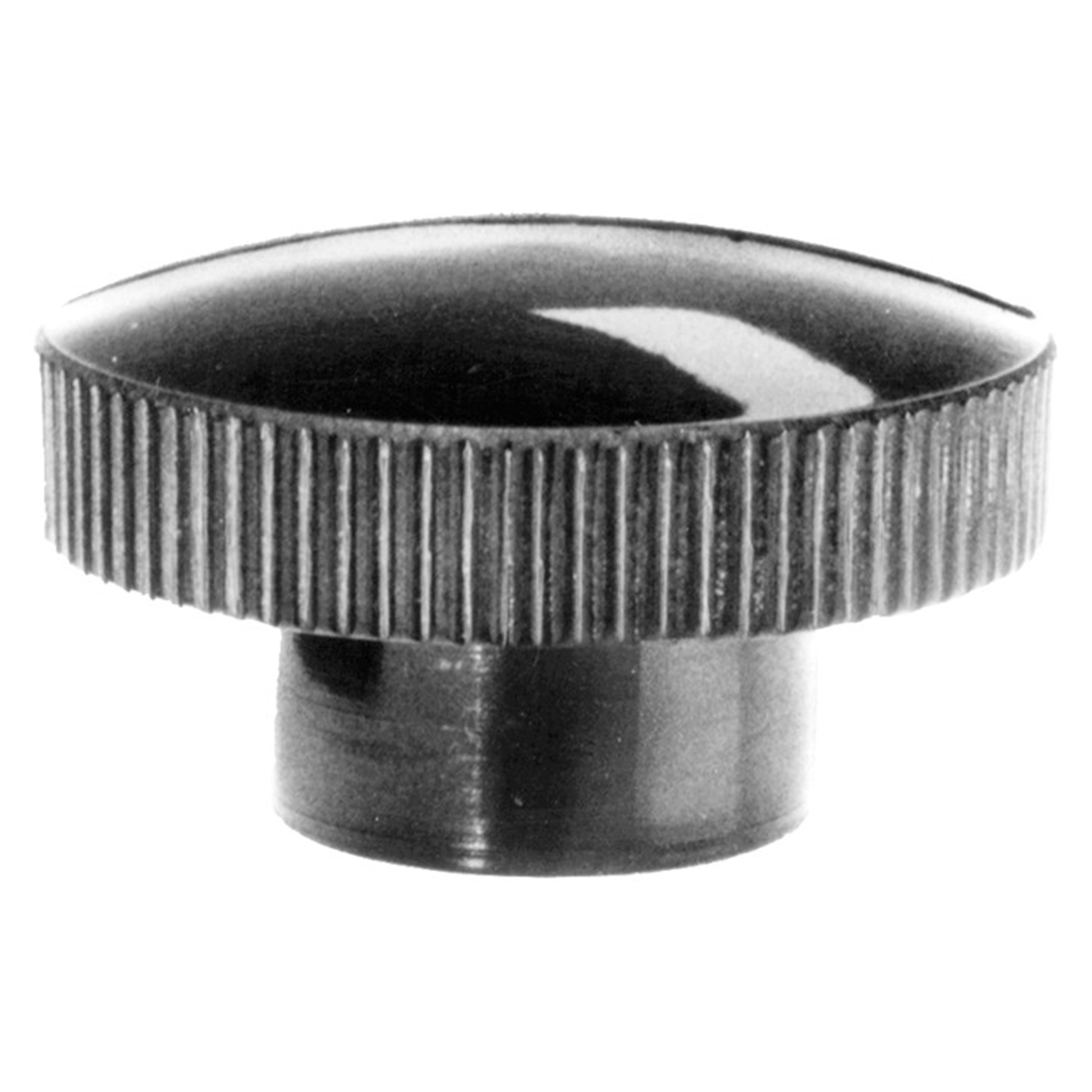

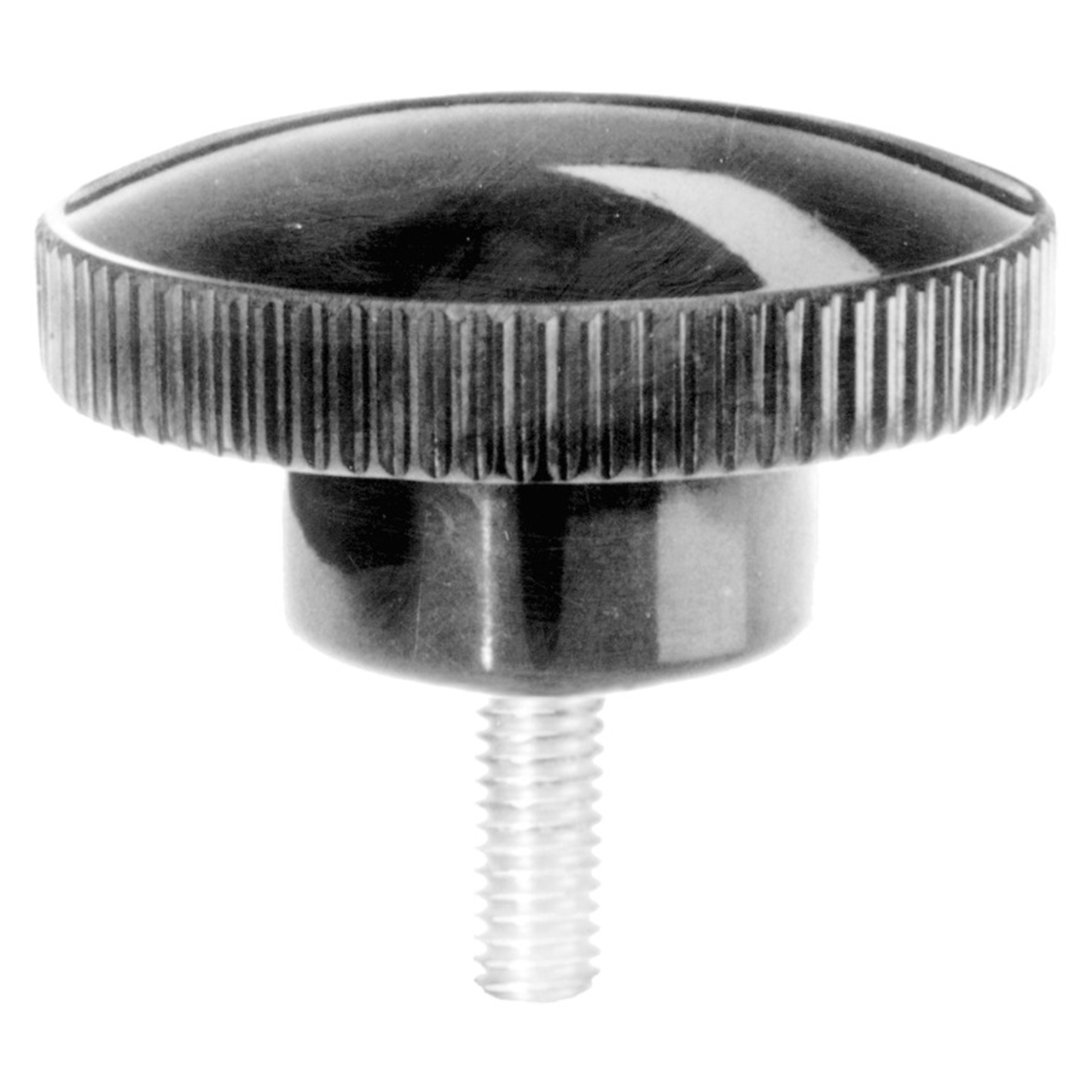

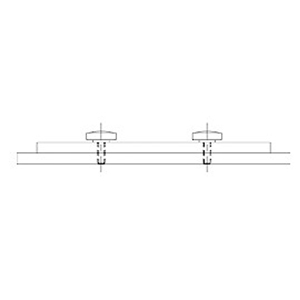

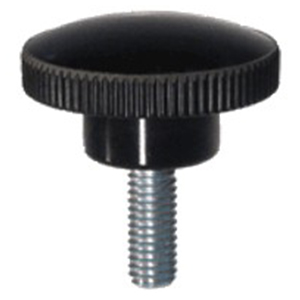

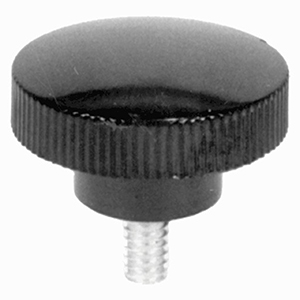

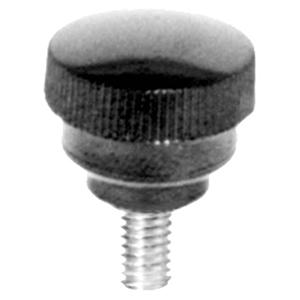

Small, easy-grip phenolic knob. Knurled head provides a positive grip for finger tightening in light clamping applications. Molded-in steel stud provides superior strength. Choice of four knob sizes, with stud sizes from #8-32 to 3/8-16 (M5 to M10 in metric). Non-standard thread sizes, reamed holes, or other lengths of molded-in studs are available in quantities of 500 and above. Made in USA.
3/8-16M10 1/4-205/16-18M8 1/4-20M6 #8-32#10-321/4-20M5
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300 Degree, resistant to oils and most common chemicals) | - | Mild steel stud, zinc plated clear chromate) | ✔ | ✔ |

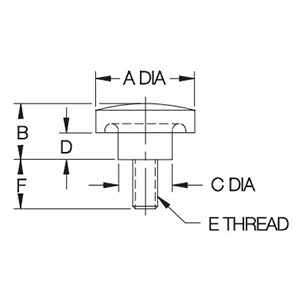

| Part Number | A DIA (mm) | B (mm) | C DIA (mm) | D (mm) | E THREAD | THREAD PITCH (mm) | F (mm) |
| CLM-432-KTK-25-PACKOF2 | 25.5 | 17 | 16 | 8 | M6 | 1 | 25 |
