Carr Lane P-40-8-.5000 | 1/2" Inner Diameter x 5/8" Outer Diameter x 1/2" Length Quick-Ship Press-Fit Bushing (P)

Product Information

P bushings are the most-popular and least-expensive type of drill bushing. P bushings are permanently pressed into the jig plate, usually flush with the top surface. They are generally used for single-operation drilling or reaming, when you do not expect to replace bushings during the tooling's lifetime. P bushings can be mounted closer together than headed bushings, but offer less resistance to heavy axial loads. Quick-Ship Drill Bushings are popular bushing sizes that we do our best to keep in stock and ready for same-day shipment 100% of the time. These bushings include most common ID drill sizes. Complete part numbers for all quick-ship P bushings are listed in the tables below.

Application Information

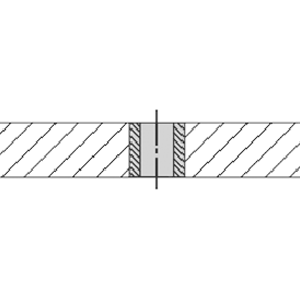

P bushings are permanently pressed into the jig plate, usually flush with the top surface.

ID Tolerance

Standard ID Tolerance:          From #80 to 1/4"          +.0001/+.0004          Over 1/4 to 3/4"            +.0001/+.0005          Over 3/4 to 1-1/2"        +.0002/+.0006

OD Tolerance

Standard OD Tolerance:          5/32 to 13/64"        +.0016/+.0012          1/4 to 13/32"          +.0016/+.0013          7/16 to 5/8"            +.0017/+.0014          3/4 to 1"                 +.0018/+.0015          1-1/8 to 1-1/4"       +.0020/+.0017          1-3/8 to 1-1/2"      +.0022/+.0018

Material

Parts Specification
