Carr Lane PC-40-8-.4062 | 5/8" Outer Diameter x 1/2" Length Quick-Ship Press-Fit Bushing (P)

Product Information

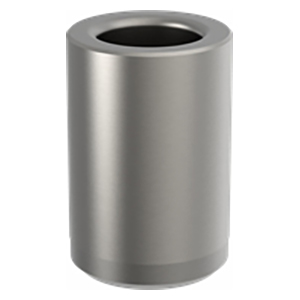

Carbide version of our popular P bushing, for high-production applications. PC bushings are permanently pressed into the jig plate, usually flush with the top surface. They are generally used for single-operation drilling or reaming, when you do not expect to replace bushings during the tooling's lifetime. PC bushings can be mounted closer together than headed bushings, but offer less resistance to heavy axial loads. Quick-Ship Drill Bushings are popular bushing sizes that we do our best to keep in stock and ready for same-day shipment 100% of the time. These bushings include the most common ID drill sizes. Complete part numbers for all quick-ship PC bushings are listed in the tables below.

Technical Information

Click here for Standard Drill Sizes

Application Information

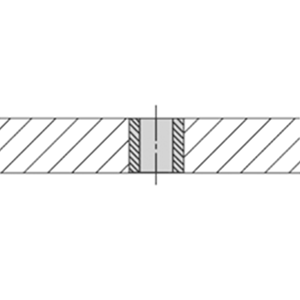

PC bushings are permanently pressed into the jig plate, usually flush with the top surface.

ID Tolerance

Standard ID Tolerance:          From #80 to 1/4"          +.0001/+.0004          Over 1/4 to 3/4"            +.0001/+.0005          Over 3/4 to 1-1/2"         +.0002/+.0006          Over 1-1/2 to 2-3/4"      +.0003/+.0007Reamer ID Tolerance (Special):          From #80 to 1/4"          +.0005/+.0008          Over 1/4 to 3/4"            +.0006/+.0010          Over 3/4 to 1-1/2"        +.0008/+.0012Reamer bushings have a different ID-tolerance range than drill bushings. To special-order bushings with the reamer ID tolerance shown here, add "-REAMER" to the part number:          PC-20-16-.1250-REAMER (Special)

OD Tolerance

Standard OD Tolerance:          5/32 to 13/64"     +.0016/+.0012          1/4 to 13/32"       +.0016/+.0013          1/2 to 5/8"           +.0017/+.0014          3/4 to 1"              +.0018/+.0015          1-3/8"                  +.0022/+.0018          1-3/4"                  +.0023/+.0019          2-1/4"                  +.0025/+.0021

Material

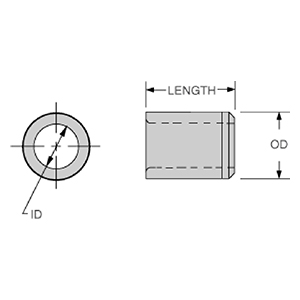

Parts Specification
