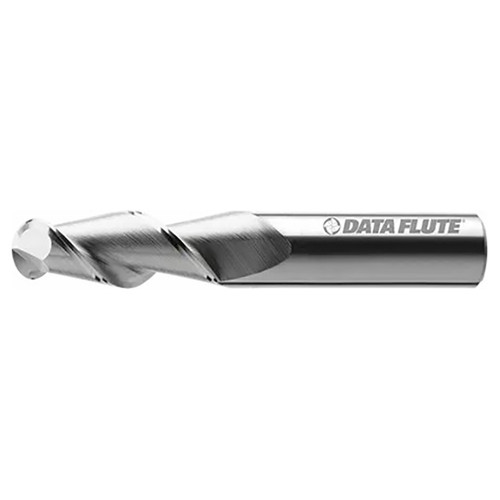

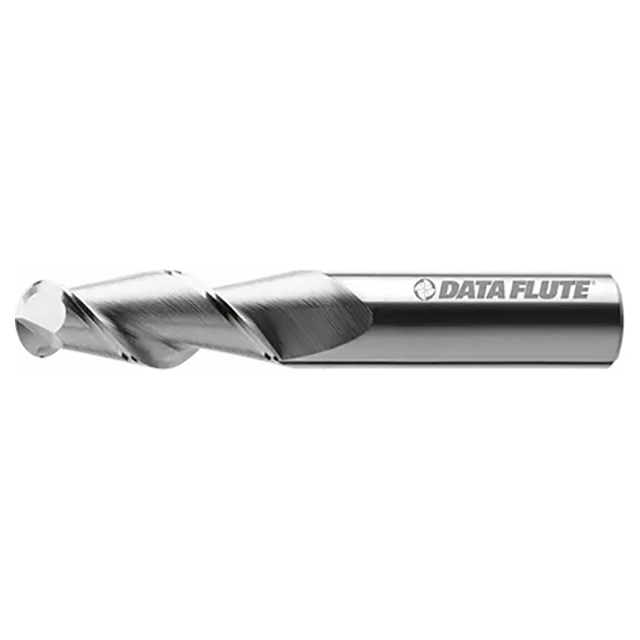

Data Flute 33464-00-D | ARFBNST20625 5/8" Diameter x 5/8" Shank x 3/4" LOC x 3-1/2" OAL Uncoated Ball End Mill

$117.15 $105.44
(You save $11.71)
Brand:
Data Flute
Diameter (Inch):
5/8"
Shank Diameter (Inch):
5/8"
Length of Cut (Inch):
3/4"
Overall Length (Inch):
3-1/2"
Finish/Coating:
Uncoated
Length of Cut (Decimal Inch):
0.7500"
Overall Length (Decimal Inch):
3.5000"
interval quantity:
1
SKU:
25295736
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Data Flute 33464-00-D | ARFBNST20625 5/8" Diameter x 5/8" Shank x 3/4" LOC x 3-1/2" OAL Uncoated Ball End Mill

The ARF-BN combines the proven geometry of our ARF two flute series with a precision ground, full, ball-nose radius. The high helix and high clearance angles provide a freer cutting ball with superior shearing properties. The ball nose is also ground with a vibration protection margin. When non-ferrous applications require contour or 3-D work, the ARF-BN should be your tool of choice.

Features:

  • Contour Milling
  • High Helix
  • High Performance Carbide
  • H6 Tolerance

Product Specifications
Manufacturer Part NumberARFBNST20625
Diameter (Inch)5/8"
Shank Diameter (Inch)5/8"
Length of Cut (Inch)3/4"
Overall Length (Inch)3-1/2"
CoatingUncoated
Product TypeBall End Mill
