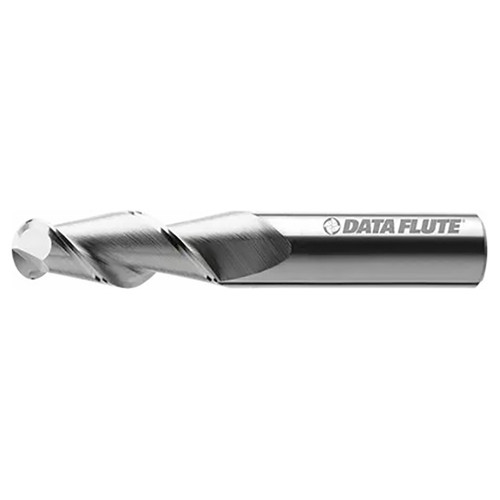

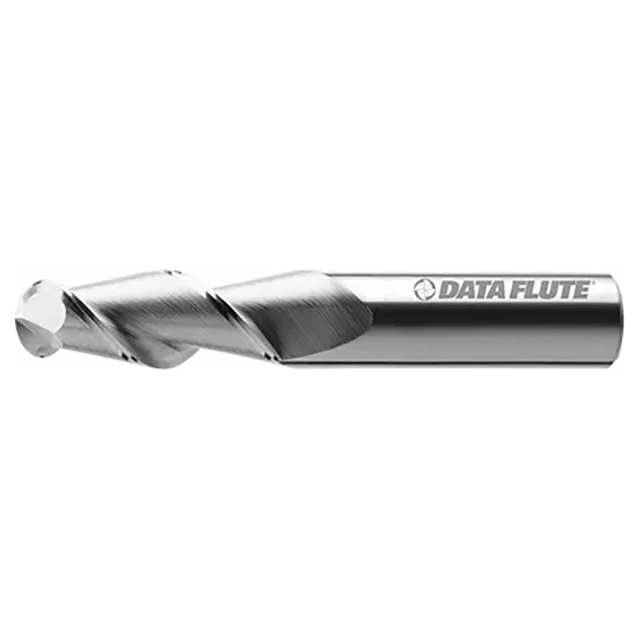

The ARF-BN combines the proven geometry of ARF two flute series with a precision ground, full, ball-nose radius. The high helix and high clearance angles provide a freer cutting ball with superior shearing properties. The ball nose is also ground with a vibration protection margin. When non-ferrous applications require contour or 3-D work, the ARF-BN should be your tool of choice.
Features:
| Manufacturer Part Number | ARFBN20625 |
| Diameter (Inch) | 5/8" |
| Shank Diameter (Inch) | 5/8" |
| Length of Cut (Inch) | 1-5/8" |
| Overall Length (Inch) | 3-1/2" |
| Coating | Uncoated |
| Product Type | Ball End Mill |
