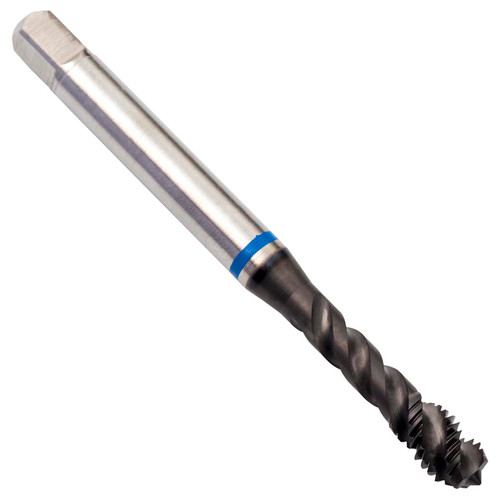

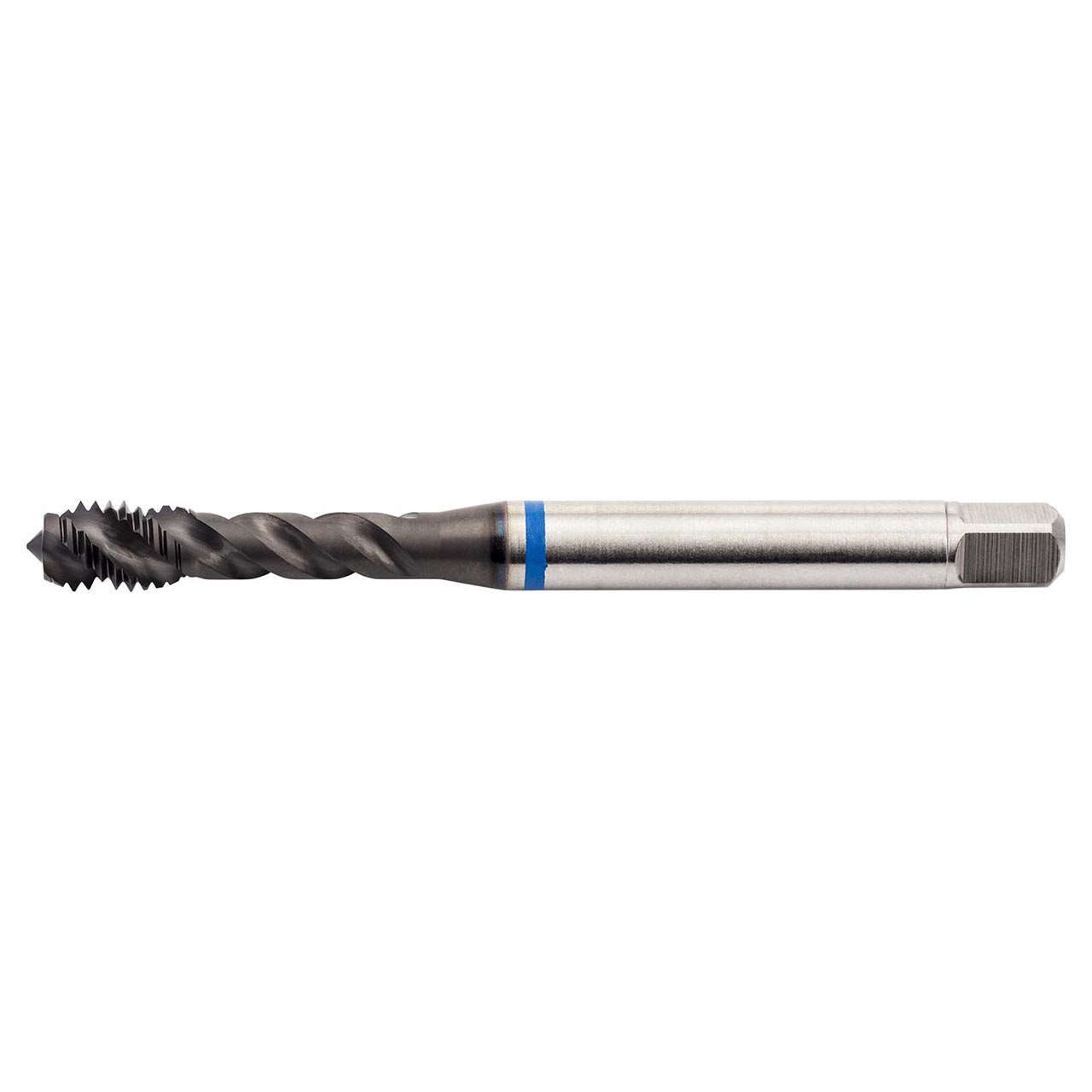

Dormer E414M6 | 0.2362" Diameter x 3.1496" OAL 3 Flute SUPER-B Coated Spiral Flute Tap

$49.95
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
17978619
Weight:
0.60 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap Blue Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M6 with 1.00mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with Super-B coating and 48° helix angle for 3xD blind hole threading in ferritic, martensitic and austenitic stainless steel.


Product Specifications
Connection Diameter (Inch)0.2362"
Overall Length (Inch)3.1496"
Clamping Width (mm)4.9mm
No of Flutes3
Flute Helix Angle48
Usable Length (mm)30mm
Thread Pitch (mm)1mm
Clamping Length8
Thread Diameter Size6
Threading Length (mm)10mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingSUPER-B
Tap Chamfer StyleC 2-3
Surface ColorBlack - Deep Purple
Thread FormM-Metric coarse
