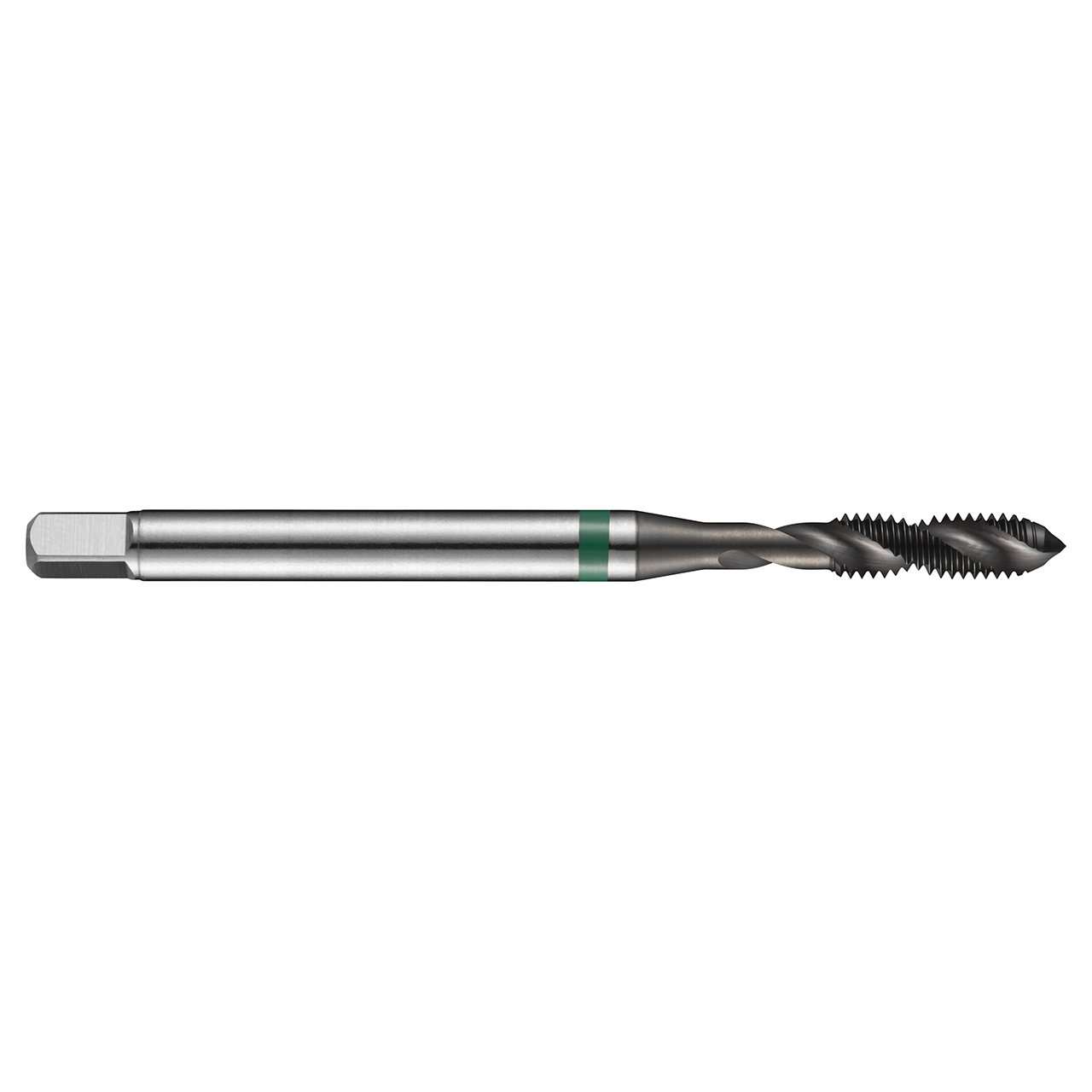

Spiral flute tap Green Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M6 with 1.00mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with Super-B coating and 35 Degree helix angle for 2.5xD blind hole threading in cast aluminium.
Product Specifications
| Connection Diameter (Inch) | 0.2362" |
| Overall Length (Inch) | 3.1496" |
| Clamping Width (mm) | 4.9mm |
| No of Flutes | 2 |
| Flute Helix Angle | 35 |
| Usable Length (mm) | 30mm |
| Thread Pitch (mm) | 1mm |
| Clamping Length | 8 |
| Thread Diameter Size | 6 |
| Threading Length (mm) | 15mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | SUPER-B |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black - Deep Purple |
| Thread Form | M-Metric coarse |
| Country of origin | India |
