Product Specifications
| EDP Number | 99001 |
| Tool Holder Size | 2-25-L |
| Minimum Bore Diameter (mm) | 8mm |
| Minimum Bore Diameter (Inch) | 0.314" |
| Stem Diameter (mm) | 6.5mm |
| Stem Diameter (Inch) | 0.256" |
| Stem Length (mm) | 35mm |
| Stem Length (Inch) | 1.378" |
| Overall Length (mm) | 134mm |
| Overall Length (Inch) | 5.276" |
| Centering Plate | CP-0 |
| Mounting Screw | MS-1 |
| Driver | T08 |
| Through Tool Coolant | Yes |

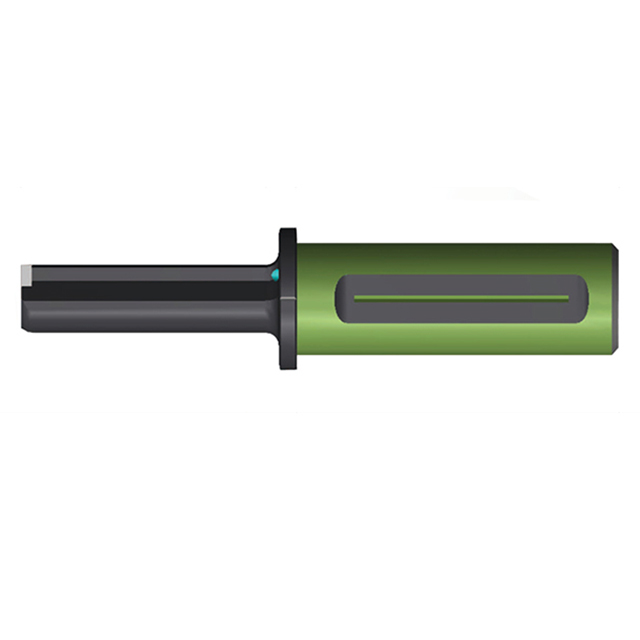

| Product Type | Indexable Broaching Toolholder |
