Product Specifications
| EDP Number | 99049 |
| Tool Holder Size | 18/26-32-L* |
| Minimum Bore Diameter (mm) | 47mm |
| Minimum Bore Diameter (Inch) | 1.850" |
| Stem Diameter (mm) | 40mm |
| Stem Diameter (Inch) | 1.575" |
| Stem Length (mm) | 200mm |
| Stem Length (Inch) | 7.874" |
| Overall Length (mm) | 309mm |
| Overall Length (Inch) | 12.165" |
| Centering Plate | CP-5 |
| Mounting Screw | MS-4 |
| Driver | 5mm-Hex |

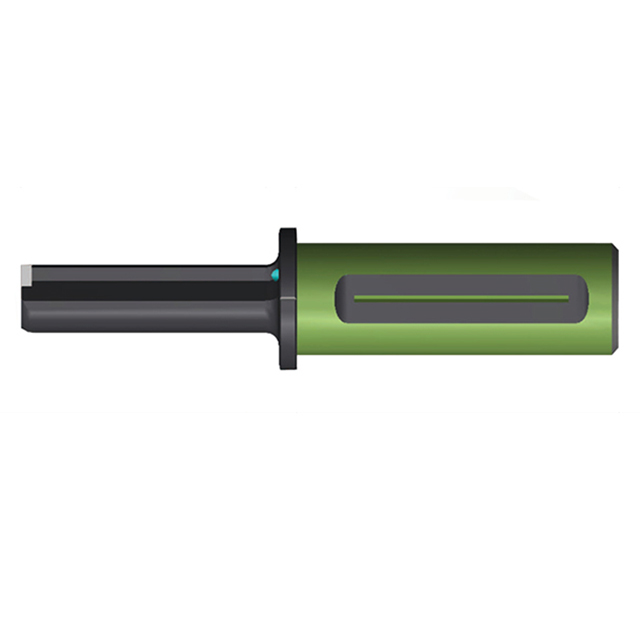

| Product Type | Indexable Broaching Toolholder |
