Product Specifications
| EDP Number | 99034 |
| Tool Holder Size | 4-32-S |
| Minimum Bore Diameter (mm) | 11.5mm |
| Minimum Bore Diameter (Inch) | 0.453" |
| Stem Diameter (mm) | 10mm |
| Stem Diameter (Inch) | 0.394" |
| Stem Length (mm) | 40mm |
| Stem Length (Inch) | 1.575" |
| Overall Length (mm) | 149mm |
| Overall Length (Inch) | 5.866" |
| Centering Plate | CP-1 |
| Mounting Screw | MS-1 |
| Driver | T08 |
| Through Tool Coolant | Yes |

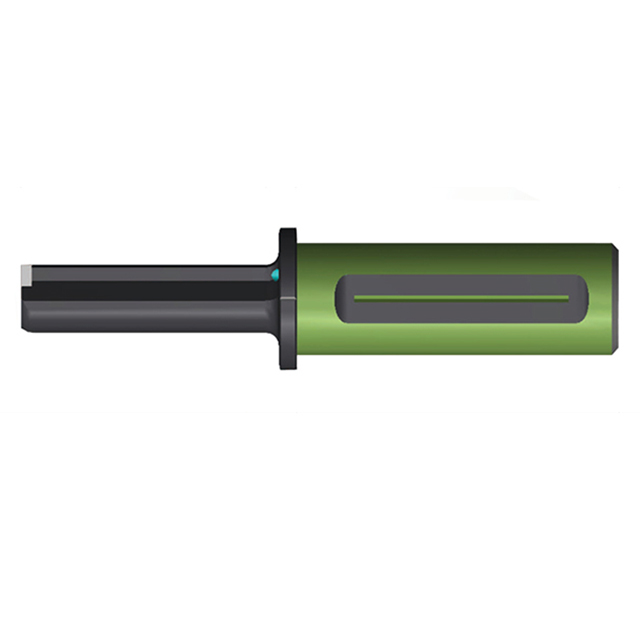

| Product Type | Indexable Broaching Toolholder |
