Product Specifications
| EDP Number | 99041 |
| Tool Holder Size | 8-32-L |
| Minimum Bore Diameter (mm) | 22.5mm |
| Minimum Bore Diameter (Inch) | 0.886" |
| Stem Diameter (mm) | 20mm |
| Stem Diameter (Inch) | 0.787" |
| Stem Length (mm) | 100mm |
| Stem Length (Inch) | 3.937" |
| Overall Length (mm) | 209mm |
| Overall Length (Inch) | 8.228" |
| Centering Plate | CP-2 |
| Mounting Screw | MS-2 |
| Driver | T15 |
| Through Tool Coolant | Yes |

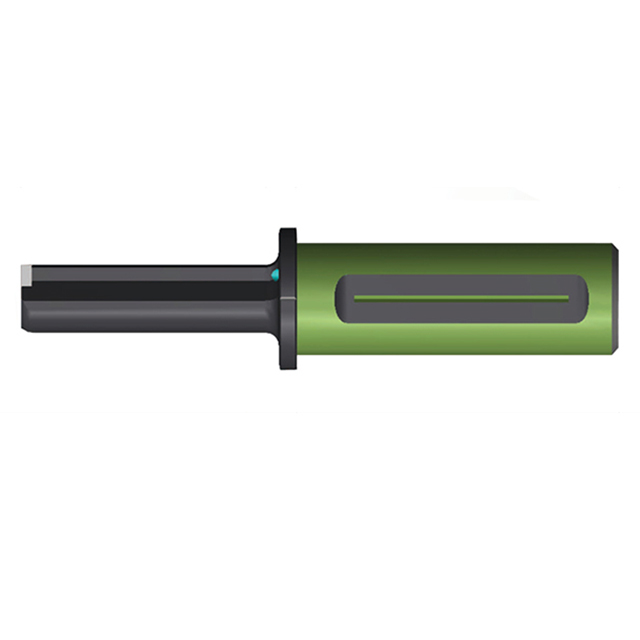

| Product Type | Indexable Broaching Toolholder |
