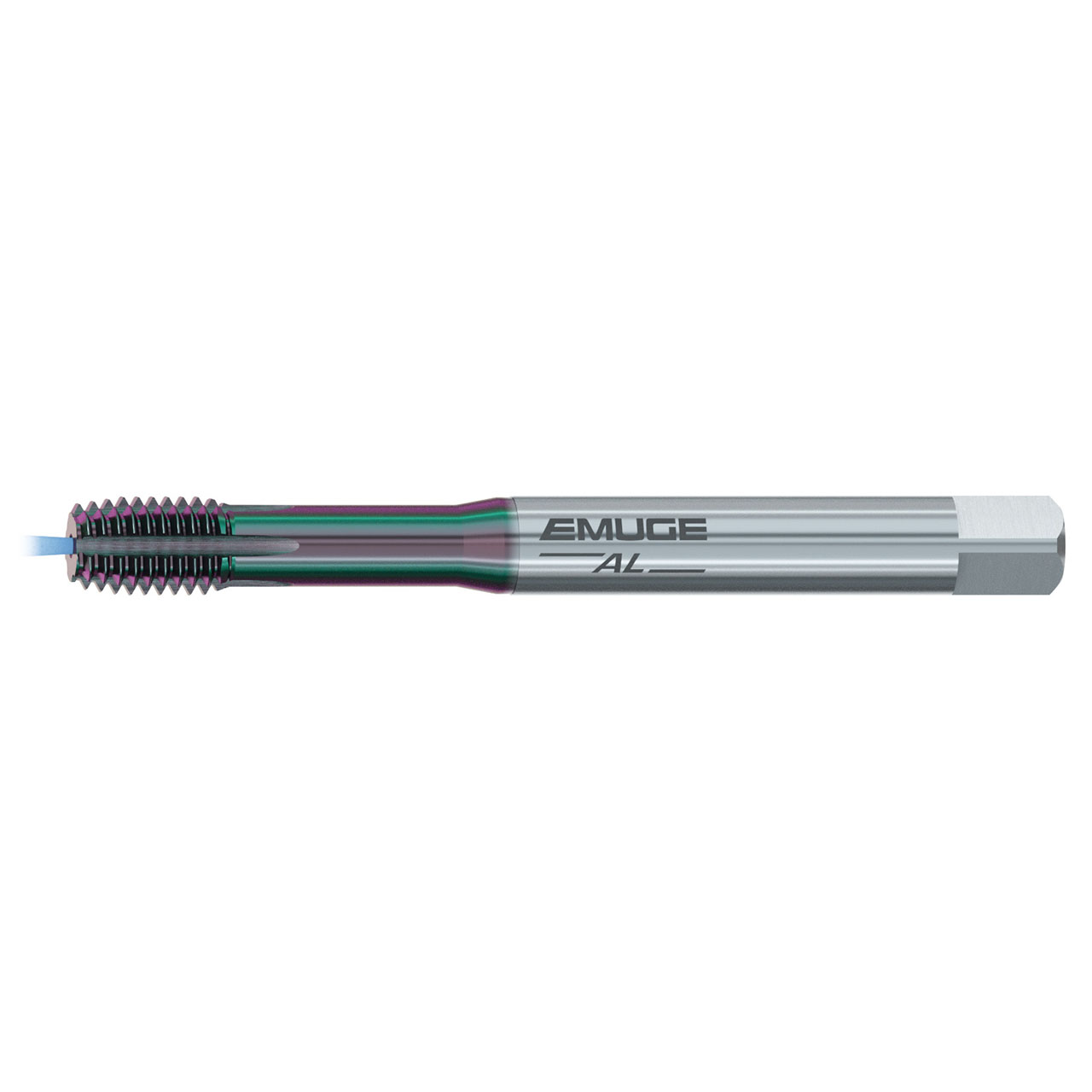

Emuge B5311Q00.0040 | M 4 Thread Size x 7.00mm Thread Length x 3.40mm Tap Square GLT-104 Coated Thread Forming Tap

$144.90
Brand:
Emuge
Thread Size:
M 4x0.7
Thread Diameter Size:
M 4
Overall Length (Inch):
2-12/25"
Overall Length (Decimal Inch):
2.4803"
Overall Length (mm):
63.00mm
Thread Length (Inch):
8/29"
Thread Length (Decimal Inch):
0.2756"
Thread Length (mm):
7.00mm
Coating:
GLT-104
interval quantity:
1
SKU:
18020061
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Emuge B5311Q00.0040 | M 4 Thread Size x 7.00mm Thread Length x 3.40mm Tap Square GLT-104 Coated Thread Forming Tap

Features:

  • The InnoForm AL/E roll form bottoming tap is designed for aluminum alloys.
  • Axial coolant fed to maximize chip evacuation and improve thread quality
  • GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
  • DIN/DIN standard dimensions for overall length and shank size

Product Specifications
Manufacturer Part NumberB5311Q00.0040
Thread SizeM 4x0.7
Thread Diameter SizeM 4
Tap Square (mm)3.40mm
Thread Length (mm)7.00mm
Overall Length (mm)63.00mm
Length GroupDIN Length
Dimensional StandardDIN/DIN
Shank Toleranceh9
Flute DirectionStraight
Thread StandardM
Thread Tolerance Class6HX
Tap Chamfer1.5 -2 P
Tap Chamfer FormE
Coolant Supply PropertyInternal
Coolant FedAxial
Cutting Edge MaterialHSSE-PM
CoatingGLT-104
Product TypeThread Forming Tap
